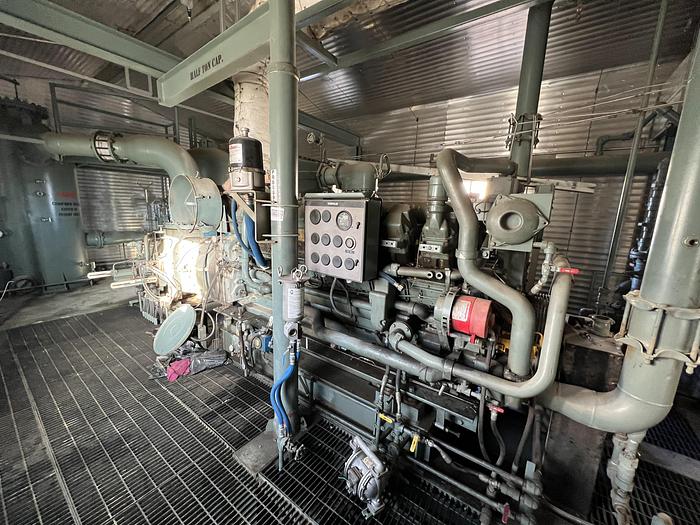

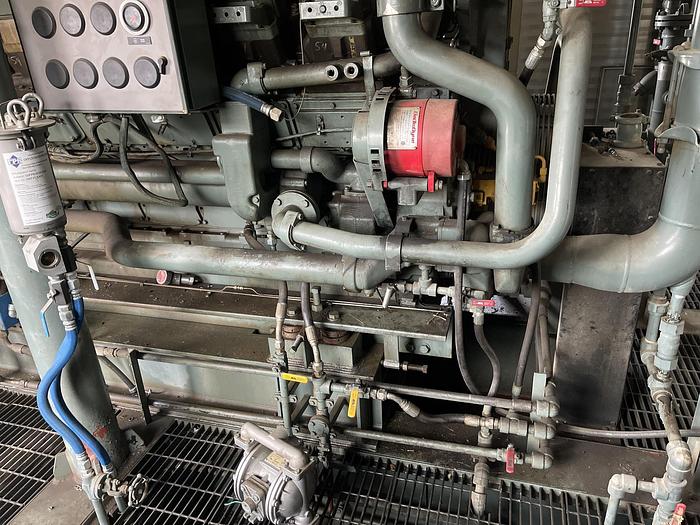

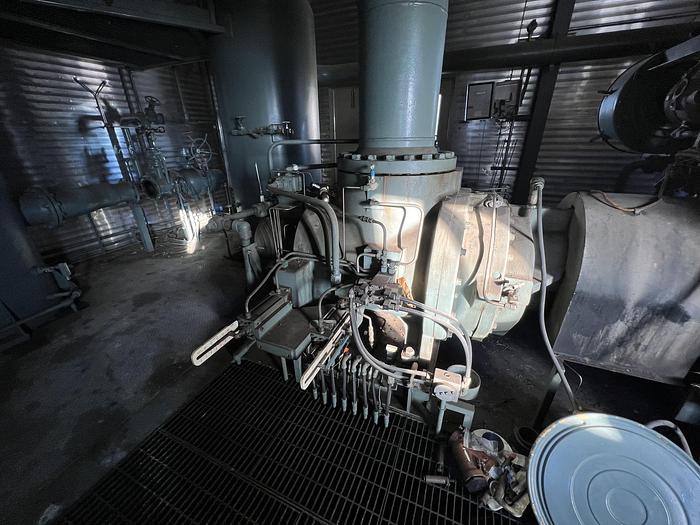

2006 Cat G3516LE Ariel RG357M Screw Compressor

Site Unit Number: 2

Cooler Certification Tag*

UW 67416C

NB: 2712

MAWP: 245 PSIG @ 250 °F

MDMT: - 20 °F 245 PSIG

Serial Number: 67416C.3

Year: 2006

Hydro: 319

Air Cooler Tag*

Manufacturer: AIR-X-HEMPHILL

Model Number: 132 EF

Job Number: 67416C

Tag Number: 42042

Ref. Number: TC000109

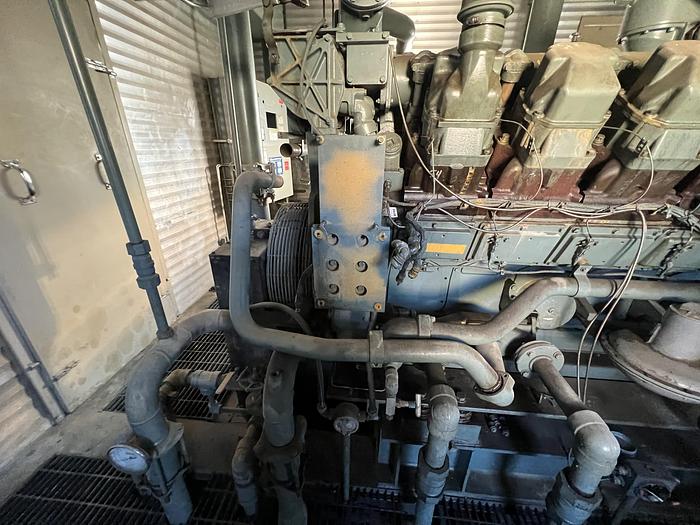

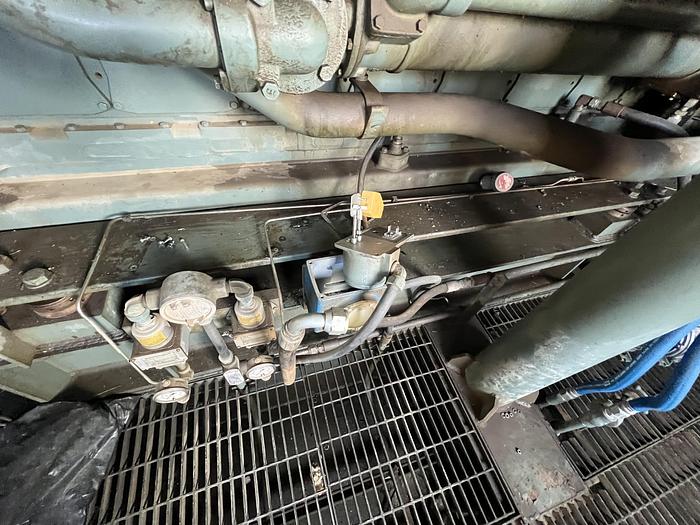

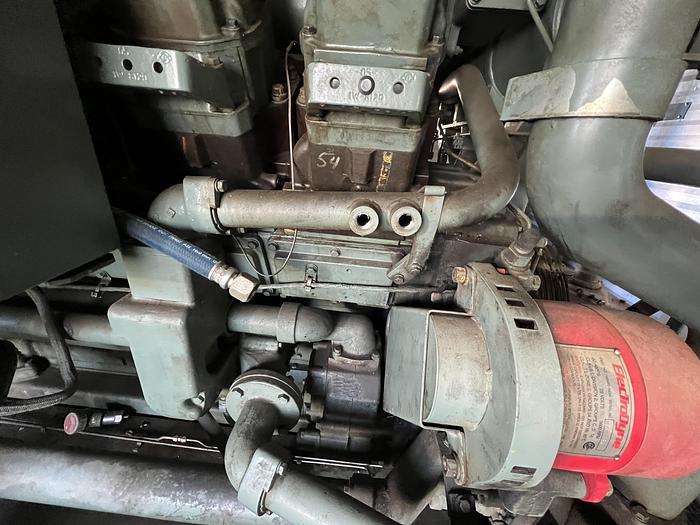

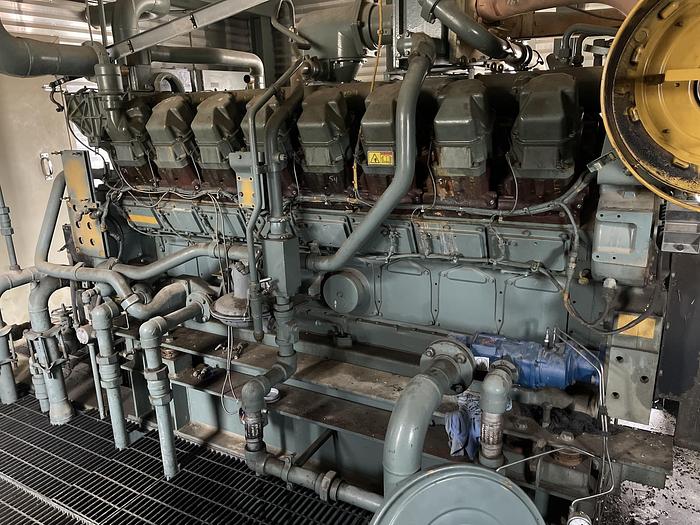

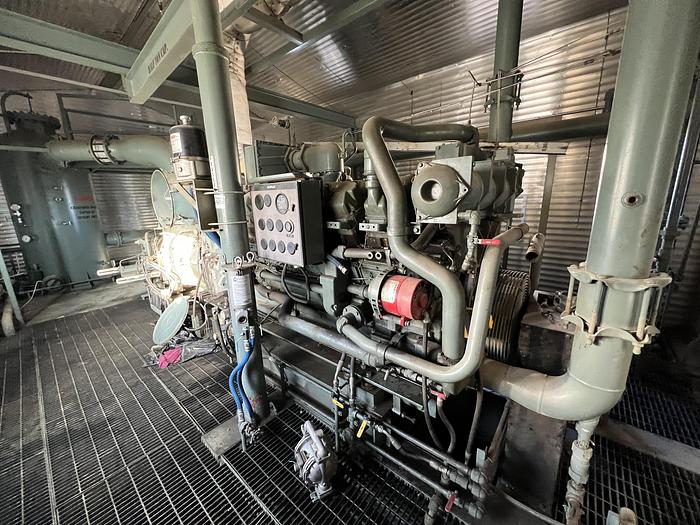

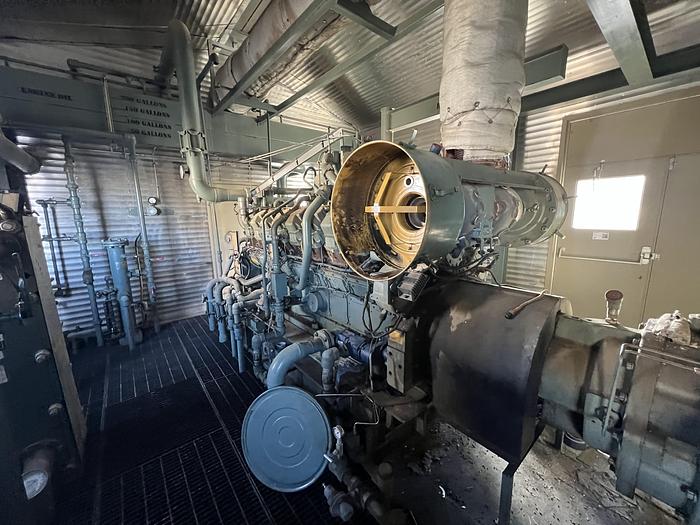

Engine Tag*

Manufacturer: Caterpillar Inc.

Serial Number: 4EK05103

AR Number: 4P-8329

Power: 858 kW

1200 RPM

Hours on Engine: 45,839

HP: 1150

Filter Tag 1*

Manufacturer: Ariel

16 VG

15 Micron Ariel Filter

#002227 or #001661

Filter Tag 2*

Manufacturer: Ariel

6 VG

5 Micron Ariel Filter

#002226 or #002110

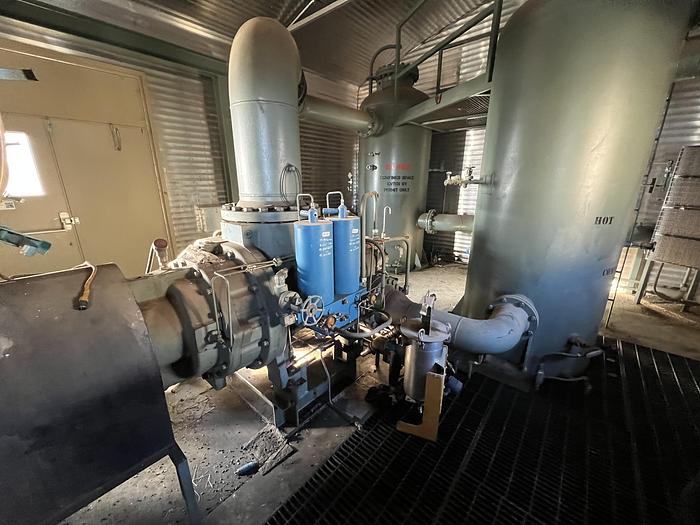

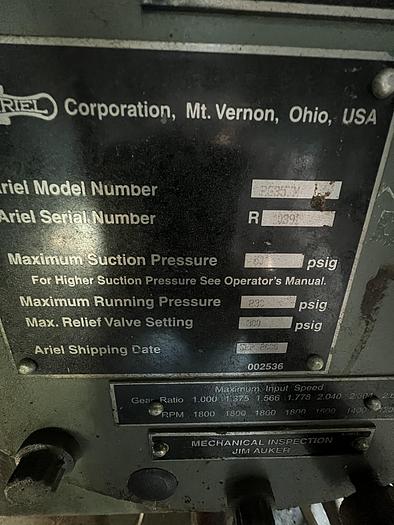

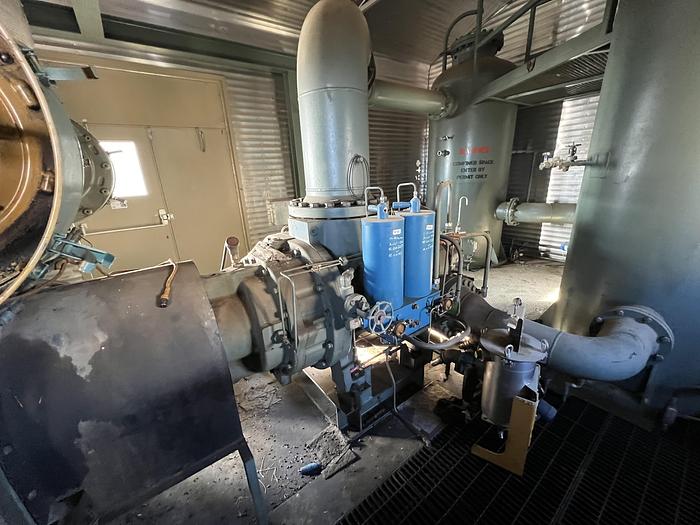

Compressor Tag*

Manufacturer: Ariel

Model Number: RG357M

Serial Number: 10391

Max. Suction Pressure: 50 PSIG

Max. Running Pressure: 230 PSIG

Max. Relief Valve Setting: 300 PSIG

Ariel Shipping Date: SEPT - 2006

Vessel Tag 1*

Manufacturer: Henry Technologies Ltd.

U RT1 - W

NB: 19684

MAWP: 245 PSI @ 250 °F

MAEWP: 15 PSI @ 250 °F

MDMT: - 20 °F @ 245 PSI

Year: 2006

Tag: VT-1150HP

Model: RX-48168-490

Vessel Tag 2*

Manufacturer: Henry Technologies Ltd.

U RT1

NB: 19685

Shell Side

MAWP: 245 PSI @ 250 °F

MDMT: - 20 °F @ 245 PSI

Serial Number: 0260436D-1

Year: 2006

Tag: V2-1150HP

Model Number: RX-42102-490

Heat Exchanger Tag*

Job Number: 42039

Type: WGR915

NB: 443

Manufacturer: ViEX Inc.

Channel "A": 245 PSI @ 250 °F

MDMT: - 20 °F @ 245 PSI

Channel "B": 245 PSI @ 250 °F

MDMT: - 20 °F @ 245 PSI

Serial Number: 271225.15

Year Built: 2006

Vessel Tag 3*

Manufacturer: Henry Technologies Ltd.

NB: 19389

MAWP: 245 PSI @ 250 °F

MAEWP: 15 PSI @ 250 °F

MDMT: - 20 °F @ 250 PSI

Serial Number: 6260293B-3

Year: 2006

Tag: 300

Model Number: RX-06048-490

Fuse Box Tag*

Manufacturer: Torormont

Unit: TESI 42042

Model: A/B Compact Logix

Serial: 80393 H

Electrical Rating: 24 VDC - 10 AMP | Class: I Div: 2 Gr: C&D

Temp Code: T3

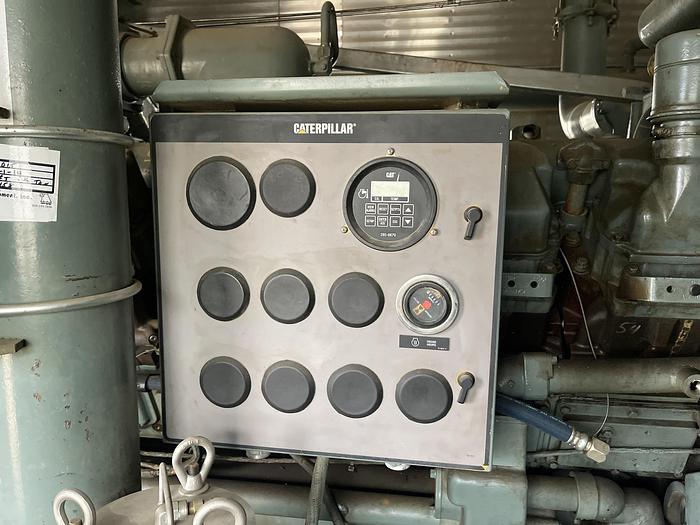

Engine Control Panel Tag*

Manufacturer: Caterpillar

Part Number: 7W38192
