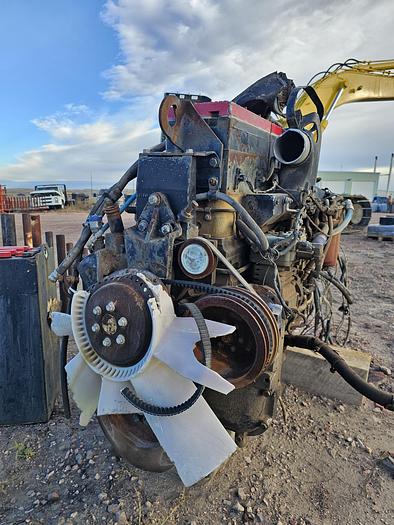

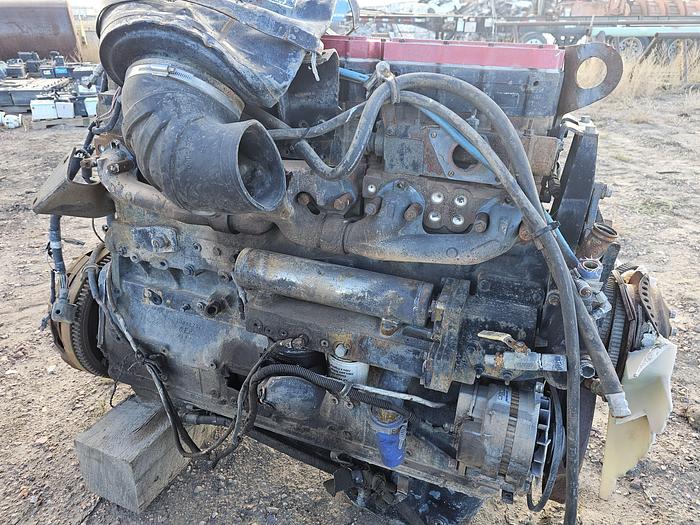

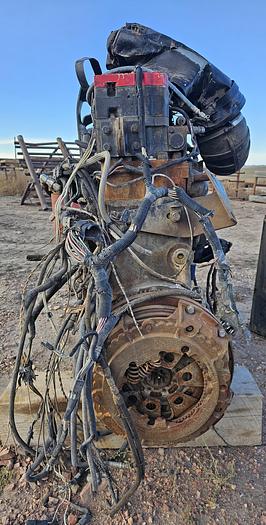

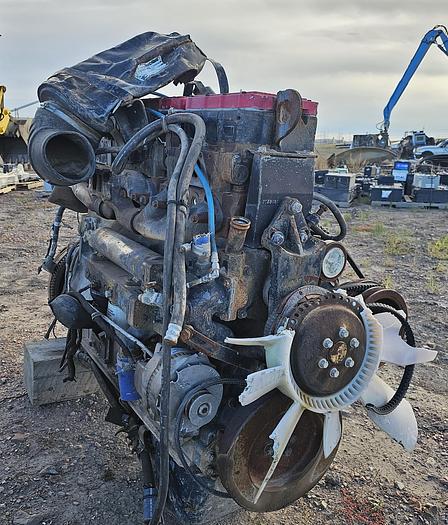

Cummins 94N14 (C14) Engine

N-14 Specs

• Displacement: 14.0 Liter

• Bore: 5.5”, 140 mm

• Stroke: 6.0”, 152 mm

• Fuel System: PT

• Horsepower: 310 - 525 HP @ 2100 RPM, 360 HP @ 1800 RPM Marine

• Power Rating: 231 - 391 kW standard, 269 kW Marine

• Rating Type: Continuous

• Dry Weight: 2800 lbs., 1300 kg

• Dimensions: Length 59 in, 1496 mm, Width 33 in, 854 mm, Height 51 in, 1293 mm.

• Compression Ratio: 17:1

• Injector Firing Order: 1-5-3-6-2-4

• Valve Timing: A Mark Cylinder 1-6, B Mark Cylinder 5-2, C Mark Cylinder 3-4

• Clearances: Intake Valves: 14 thousands, Exhaust Valves: 27 thousands

Used Engine Only
