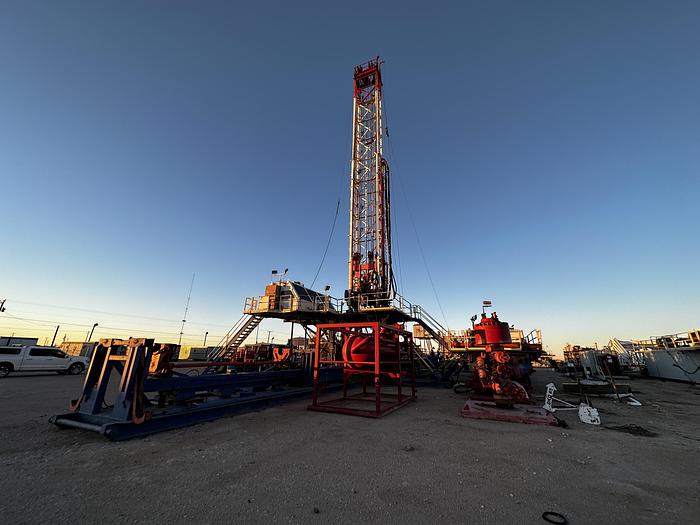

2013 Service King SK-775 Drill Rig

Costly drilling delays? The Service King drill rig ensures top performance and minimizes downtime. Your answer for seamless, uninterrupted operations.

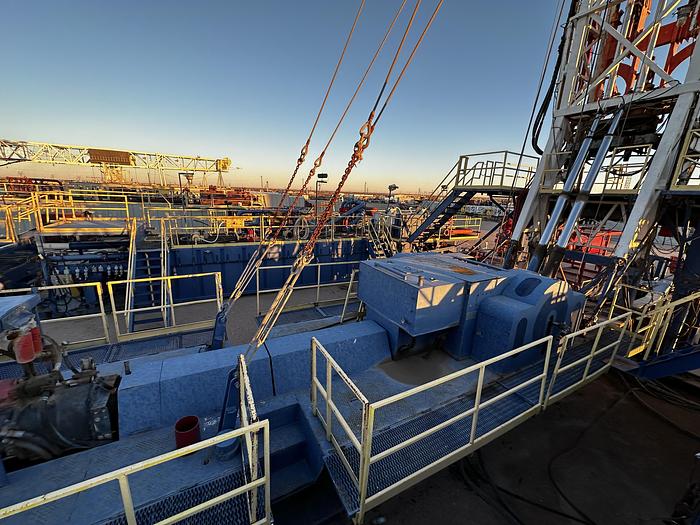

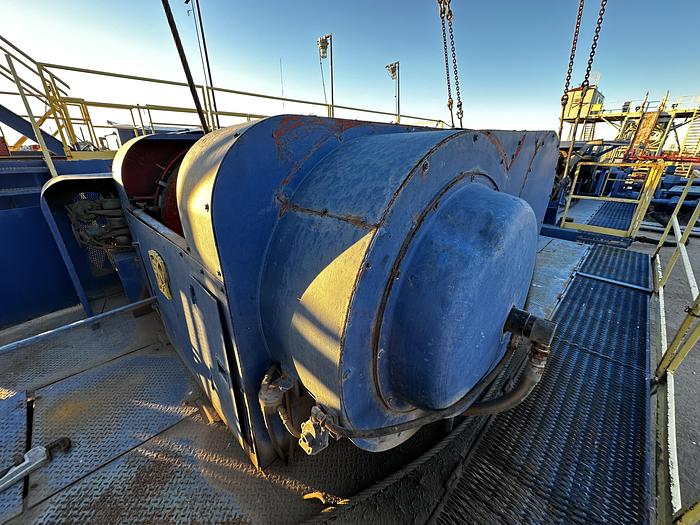

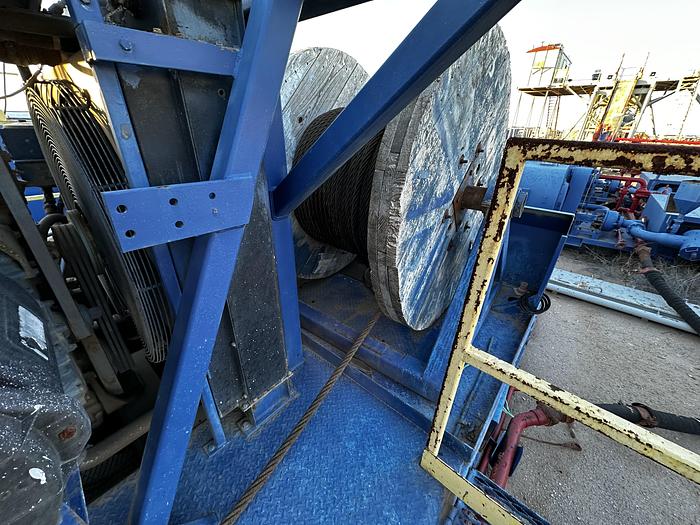

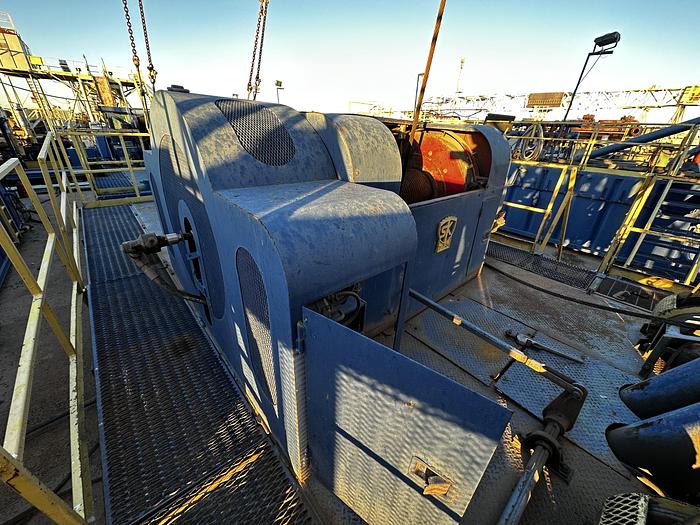

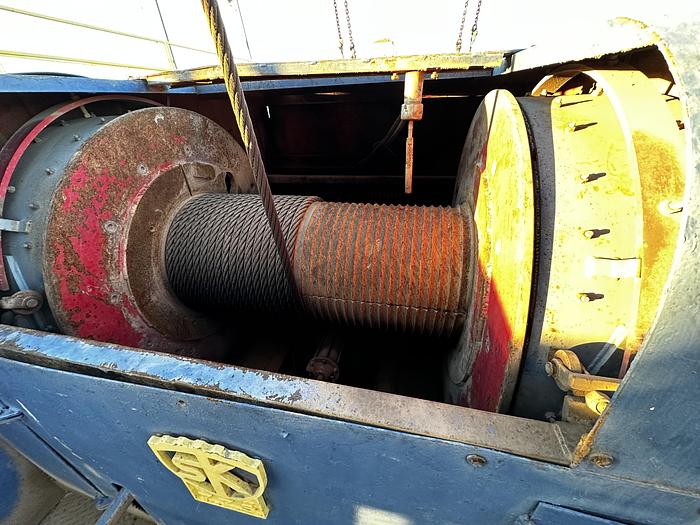

Draw Works:

Service King SK775 775 HP

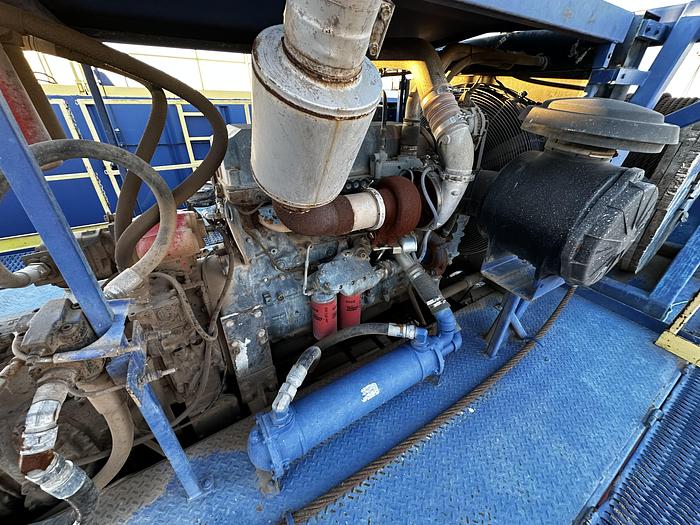

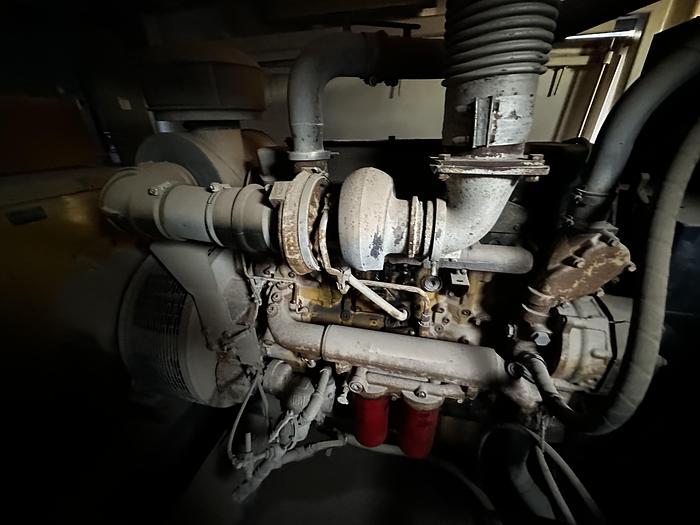

Power:

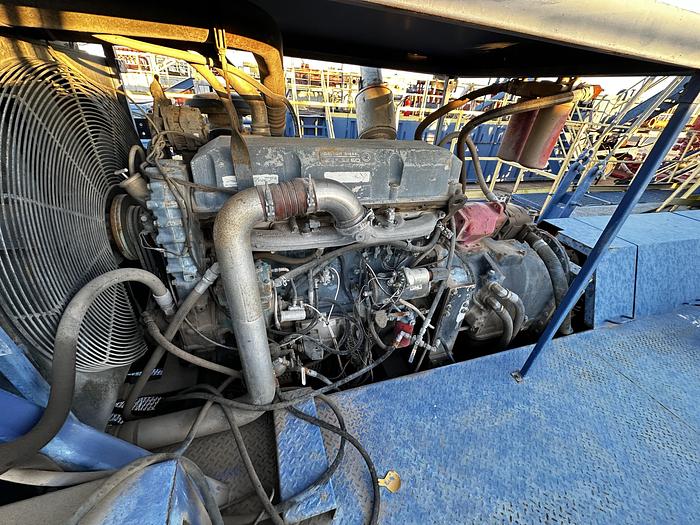

P550 HP Series 60 Detroit Engine

Allison 6 Speed Transmission

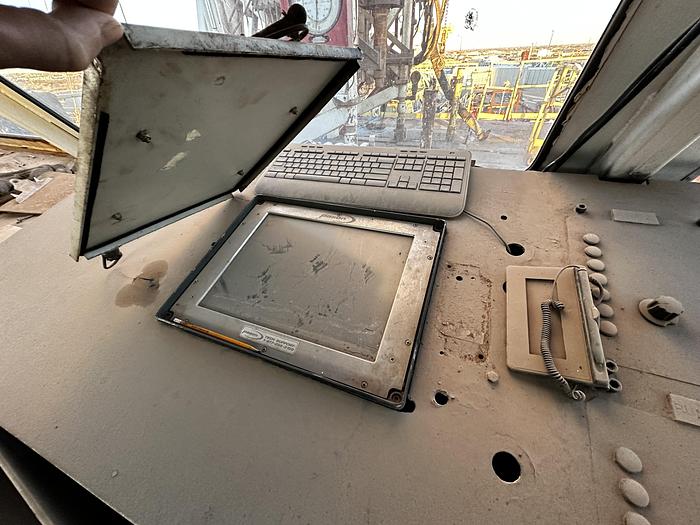

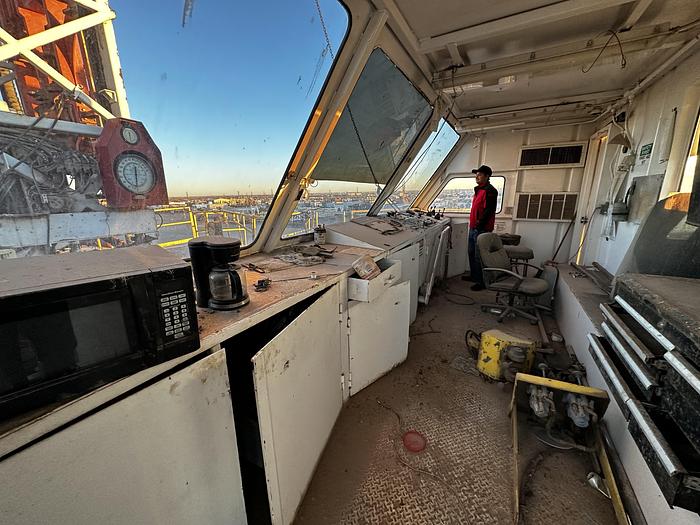

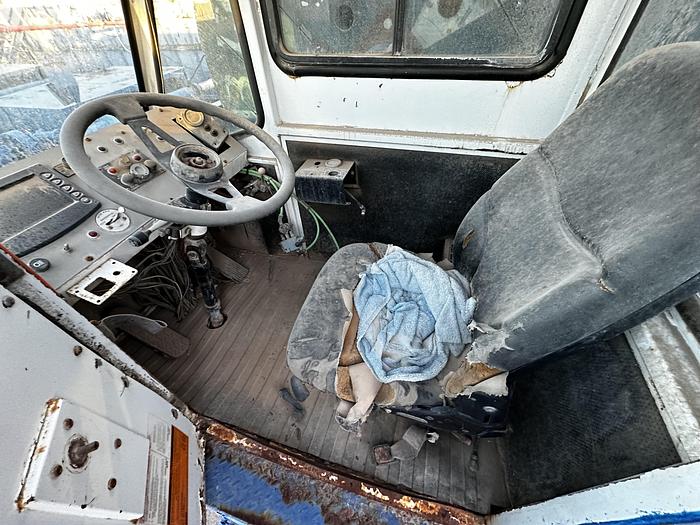

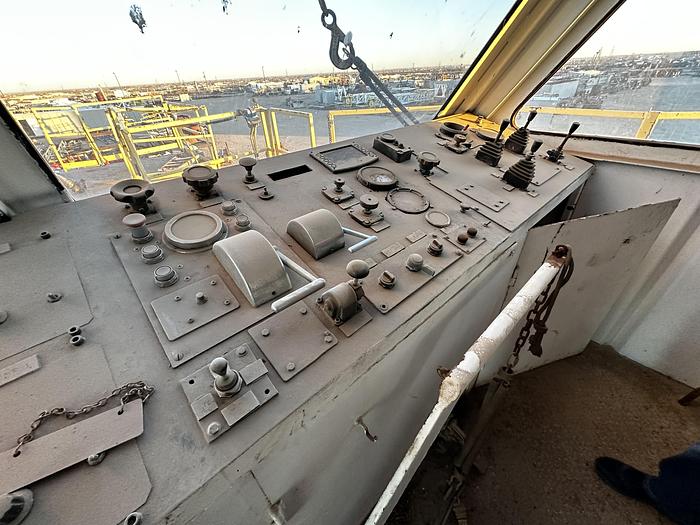

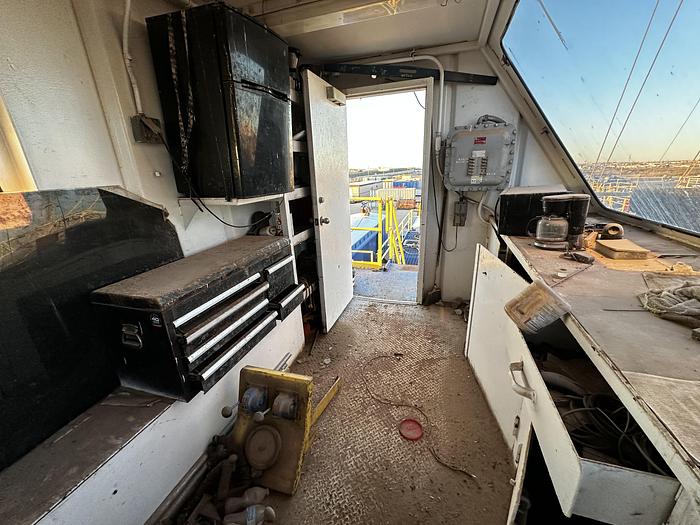

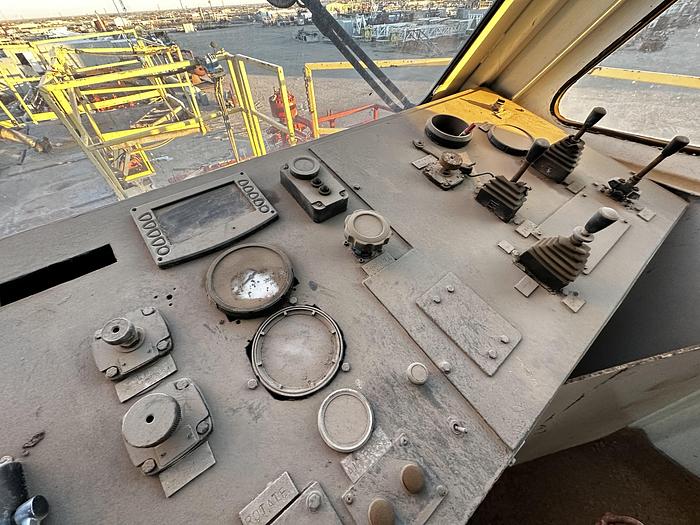

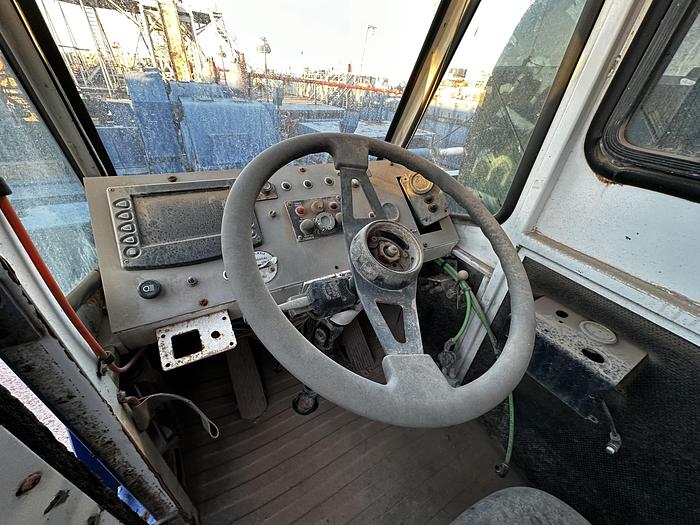

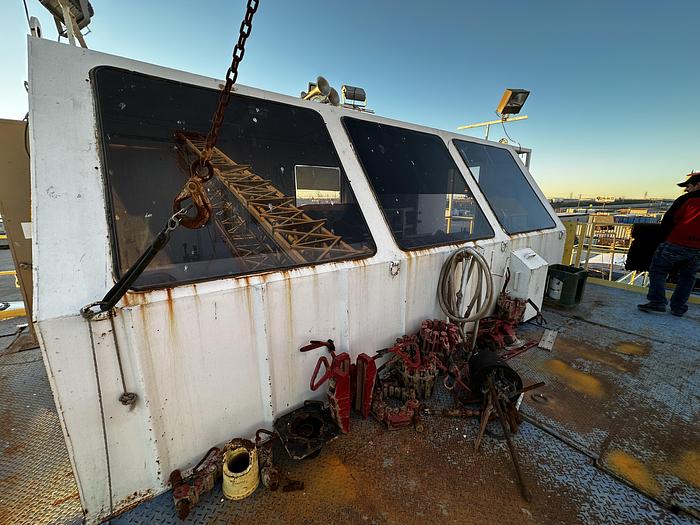

Climate Controlled Drillers Cabin

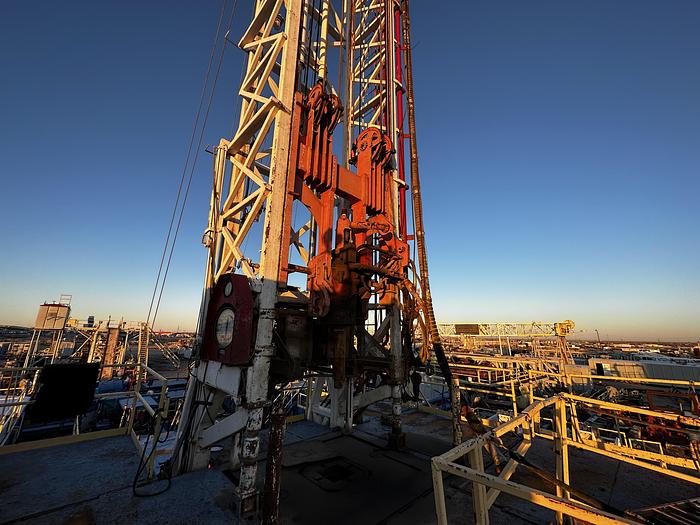

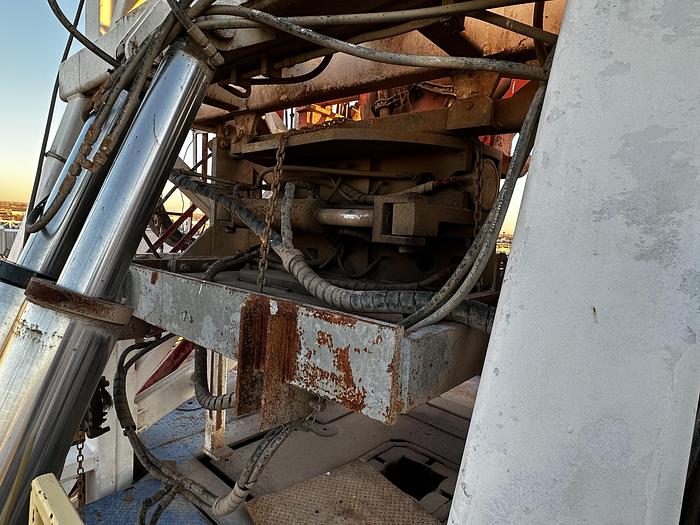

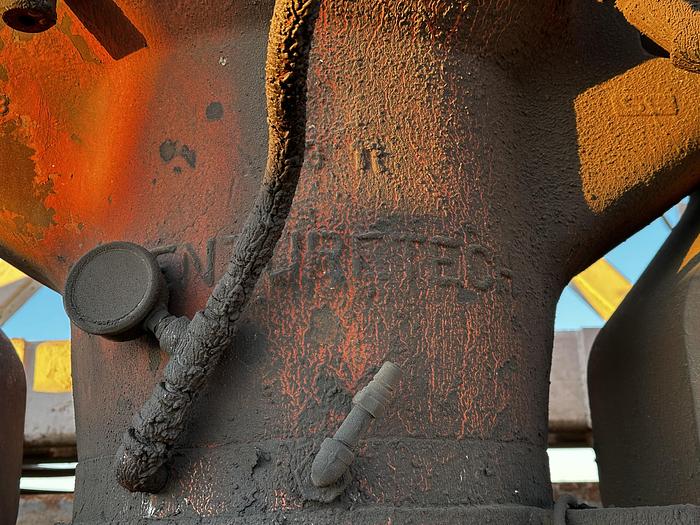

Hydraulic Top Drive:

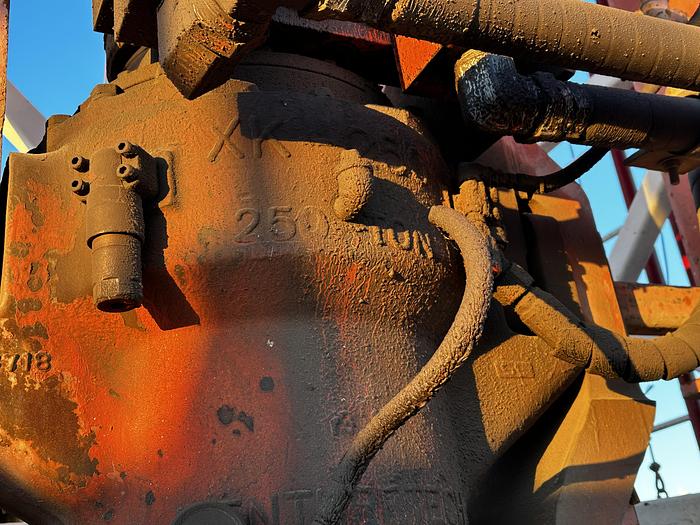

Venturetech XK-250, 250 Ton

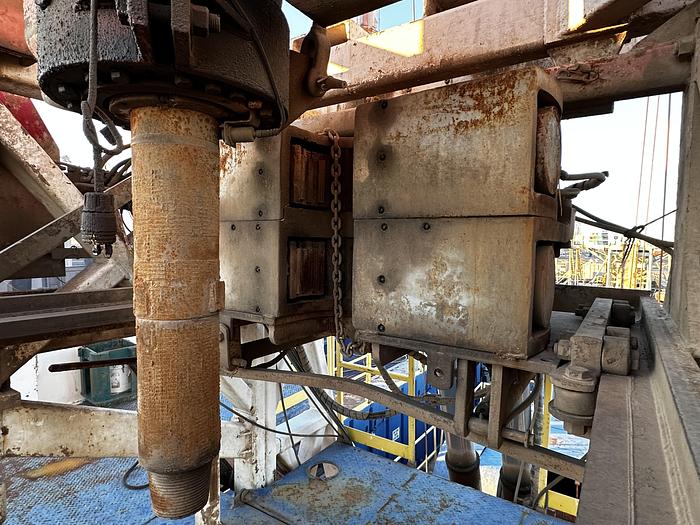

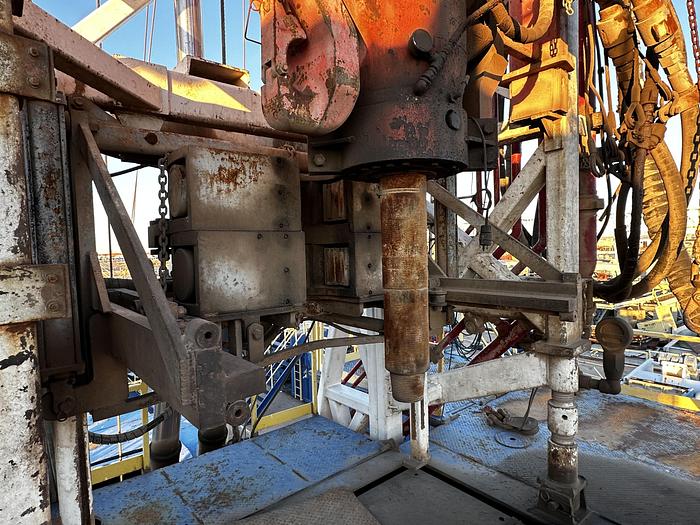

Breakout Tool:

Apache Torque Chief

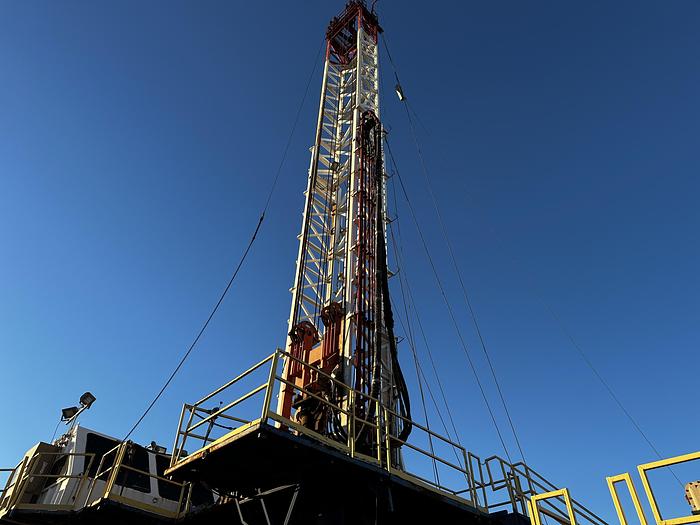

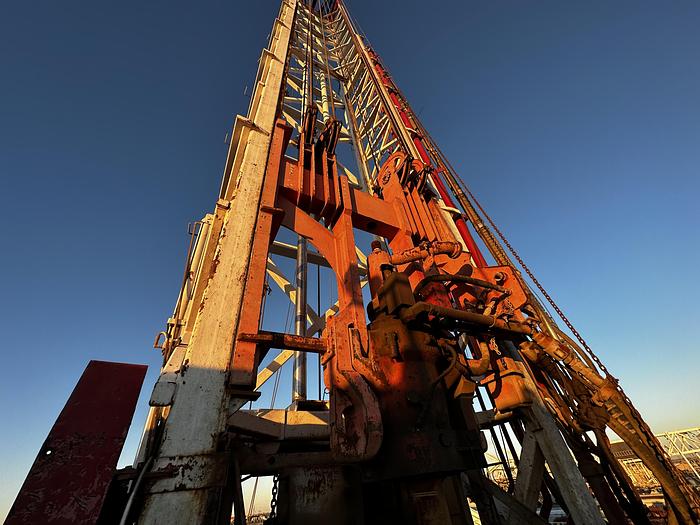

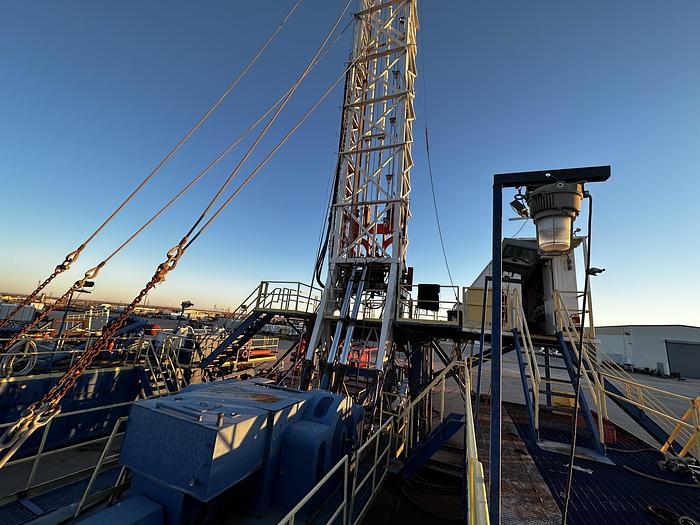

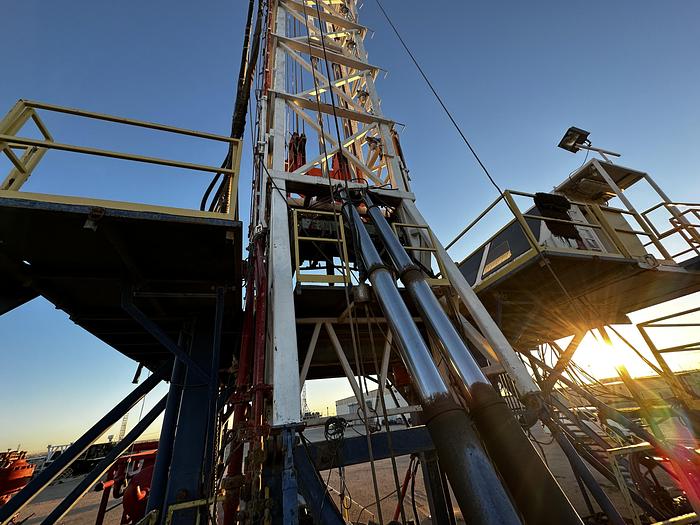

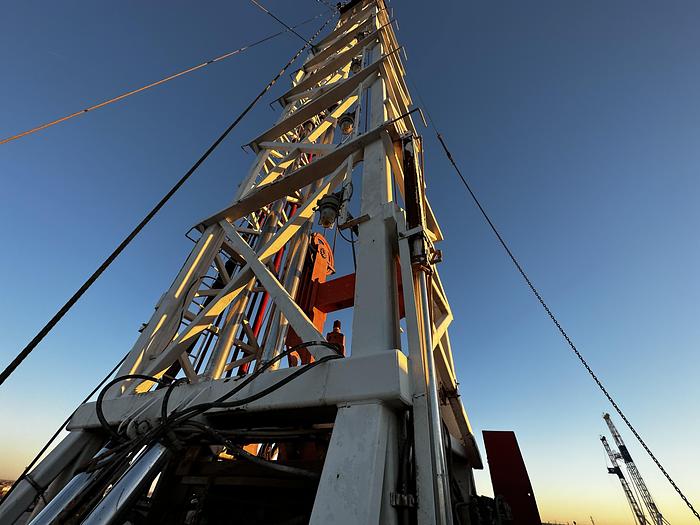

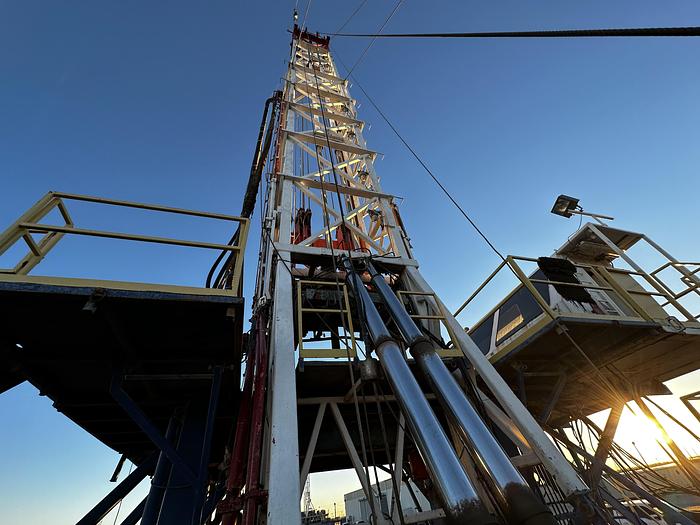

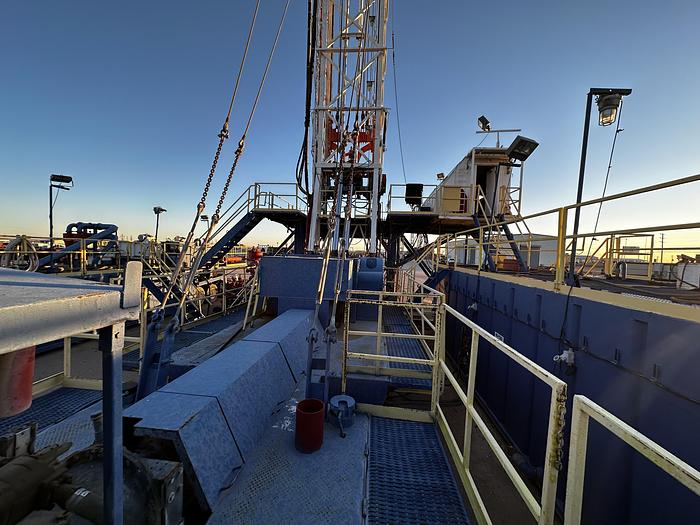

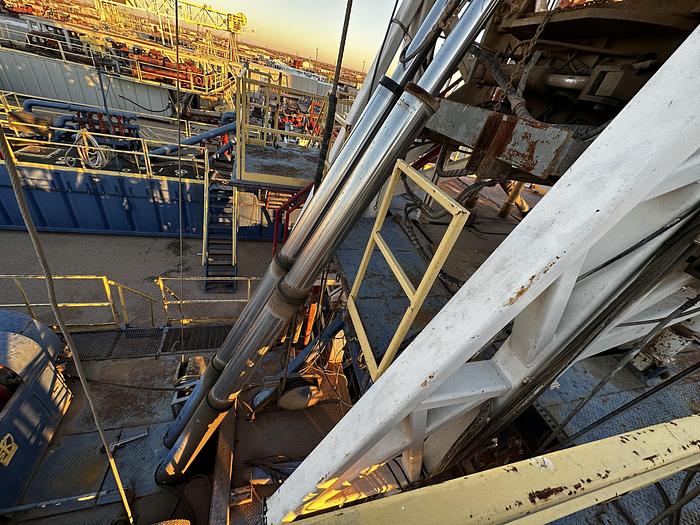

Mast:

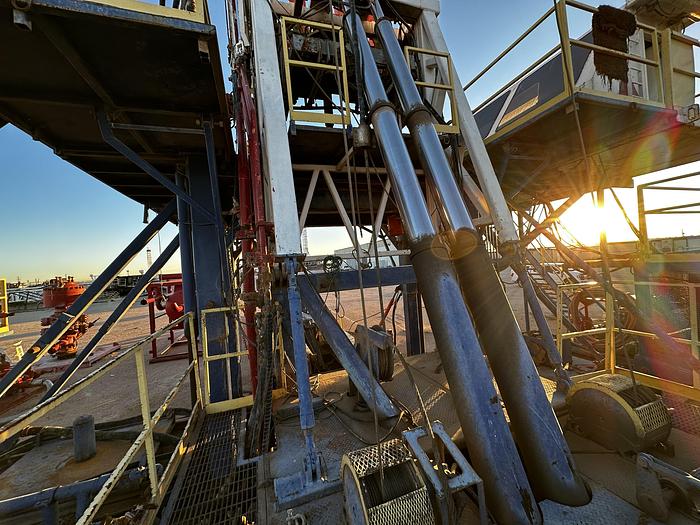

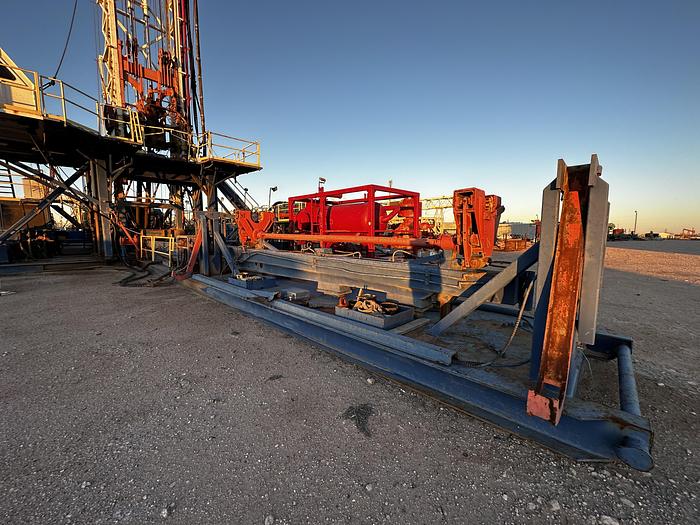

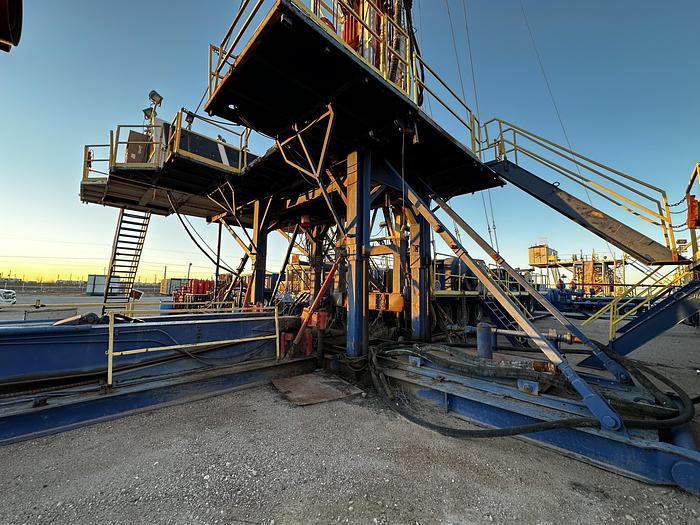

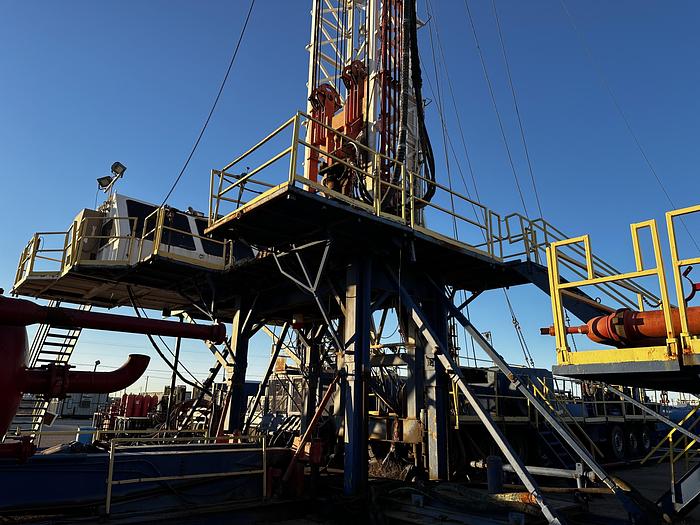

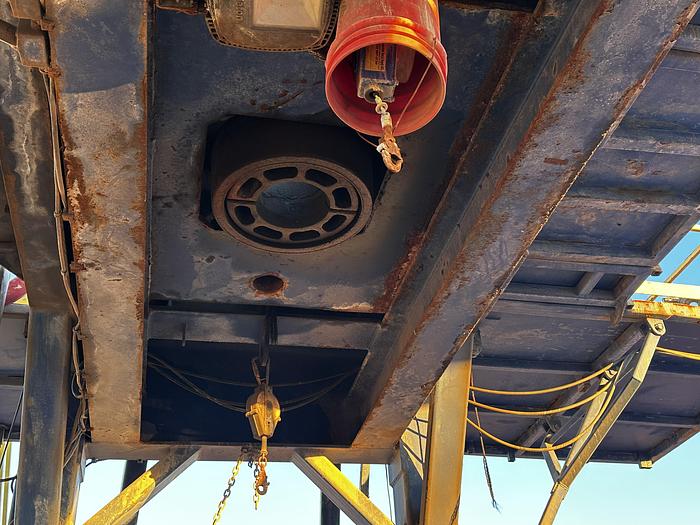

Substructure:

Service King 15’ Telescoping Sub 500,000 # Rotary Capacity

56’ Mud Boat

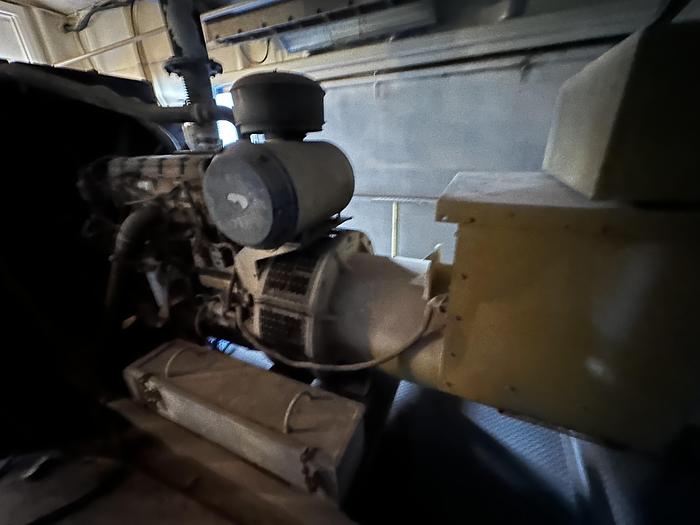

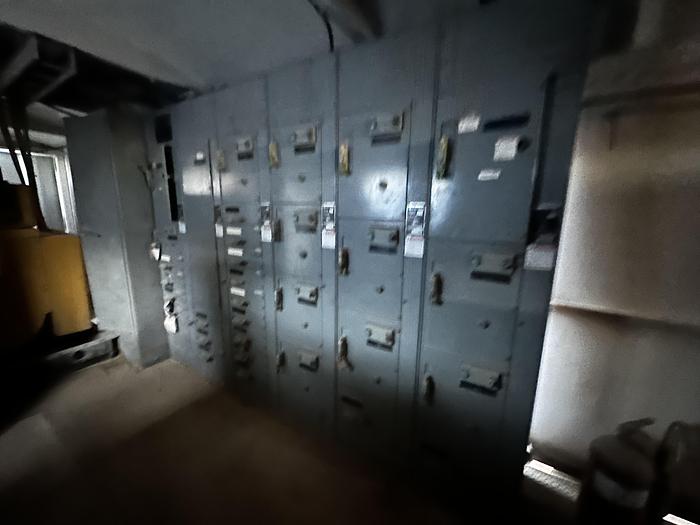

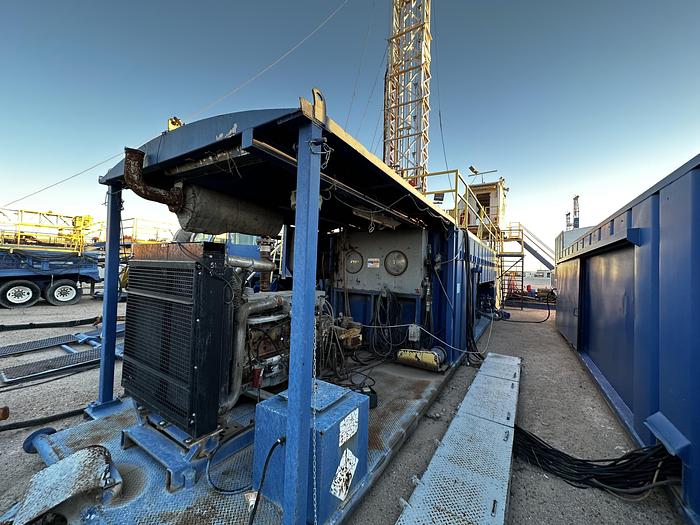

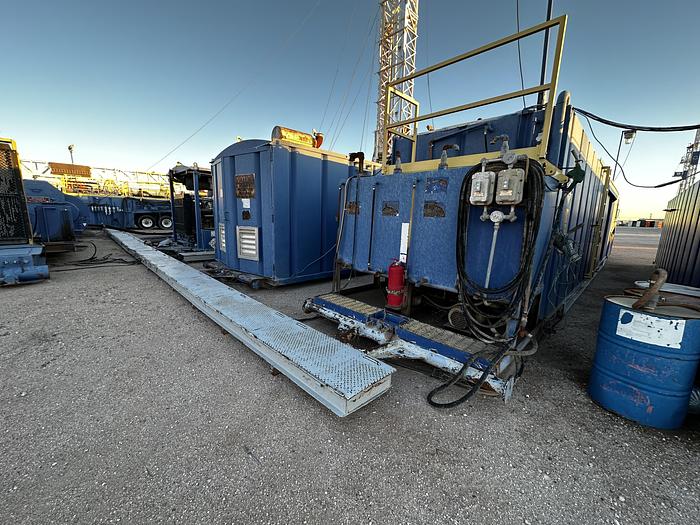

Electrical Power System (On Axles):

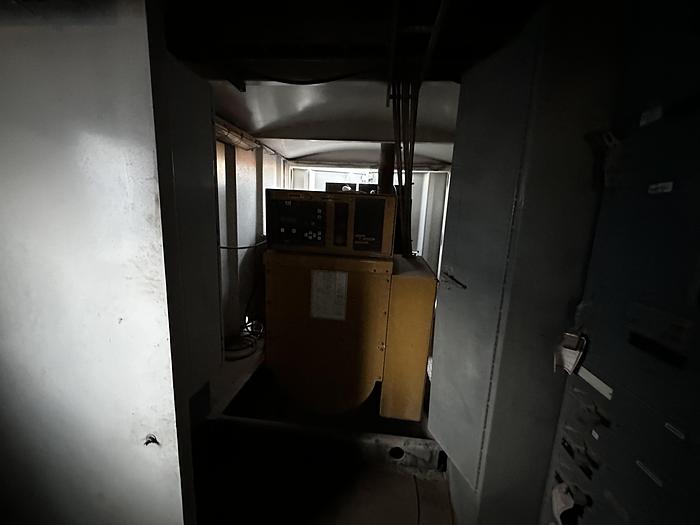

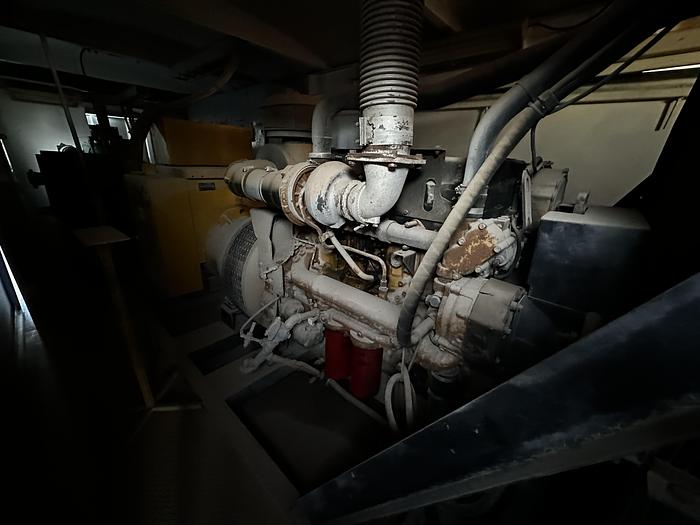

2 – Magnamax 420 KW/60 Series Detroit Light Plant/Bottom Dog House Combo Sullivan Palatek Air Compressor

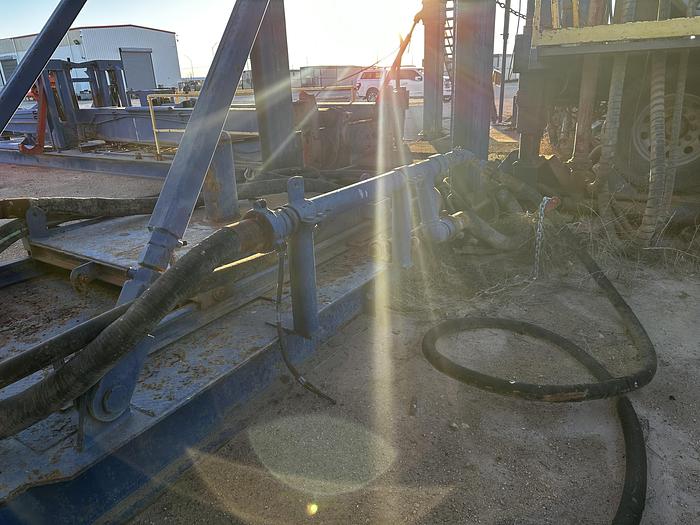

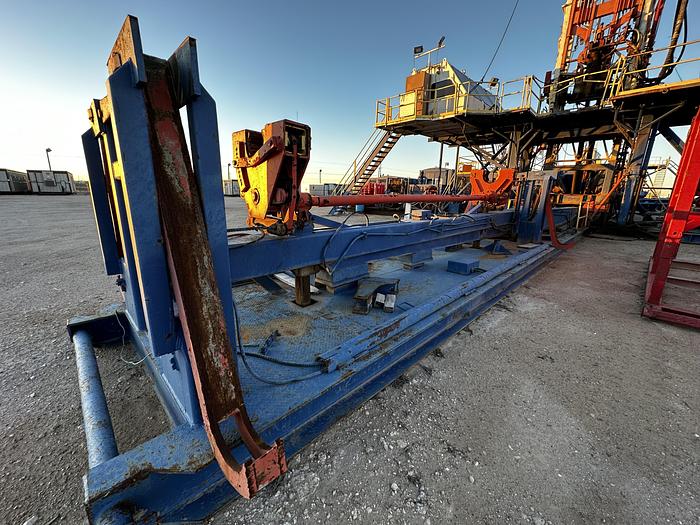

Pipe Handling System:

Service King Pipe Handler

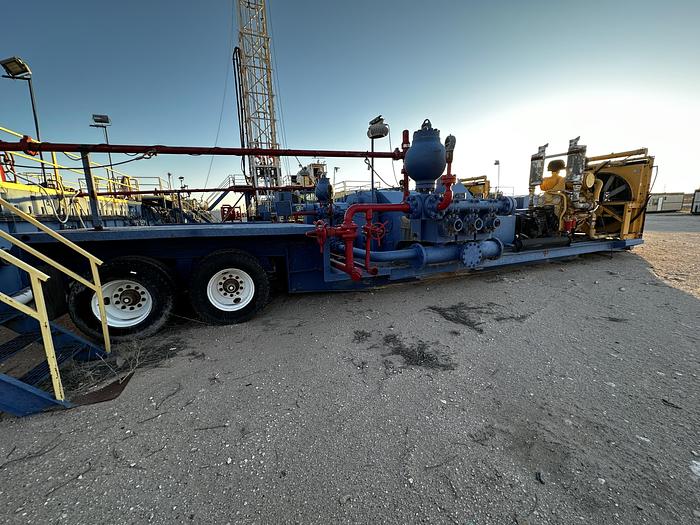

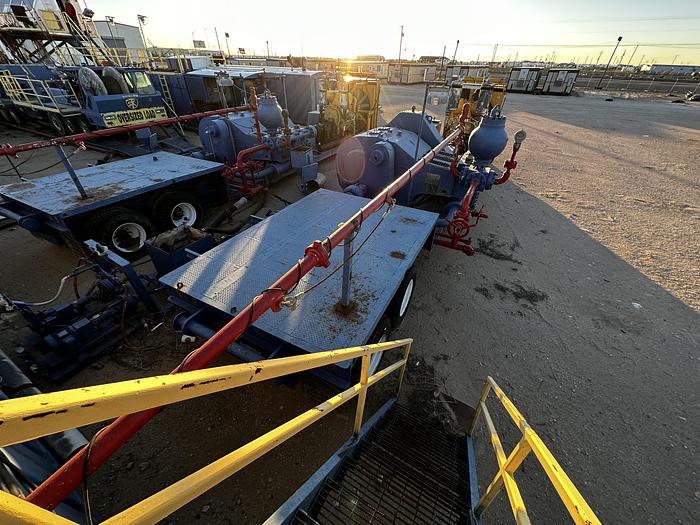

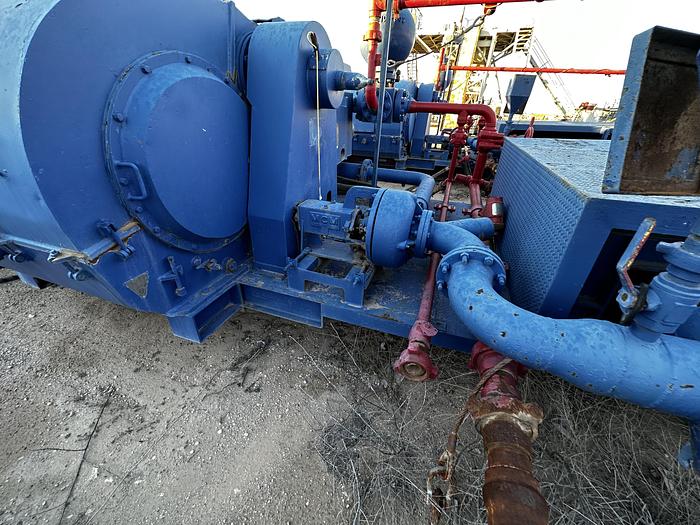

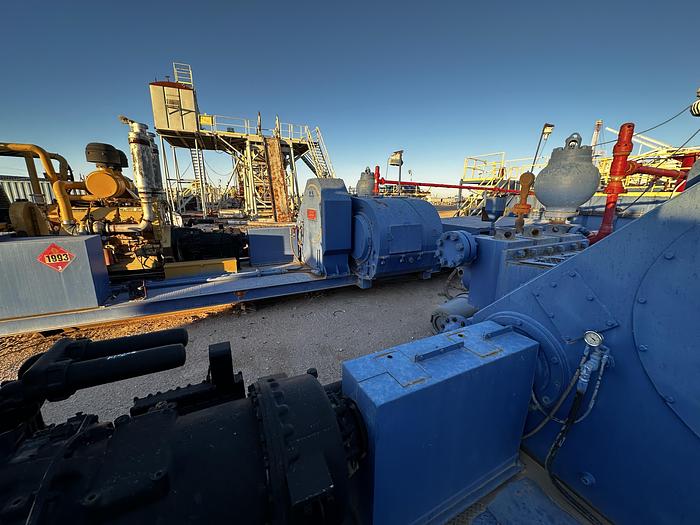

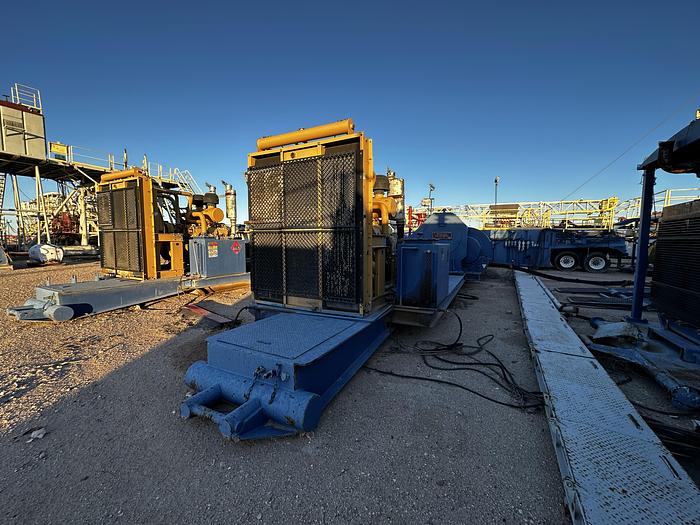

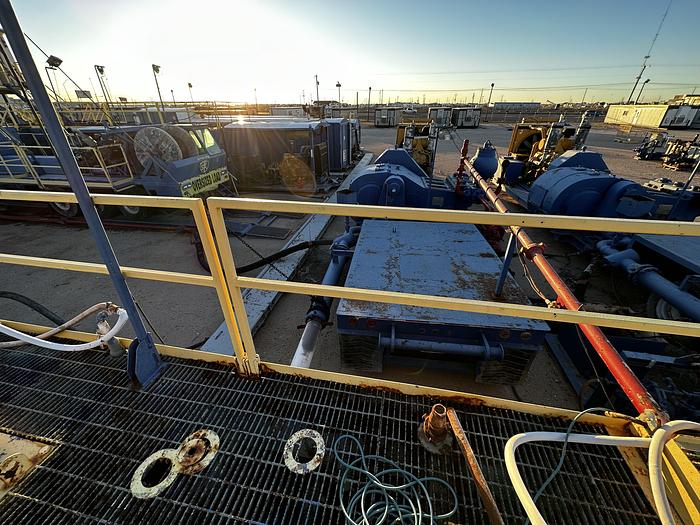

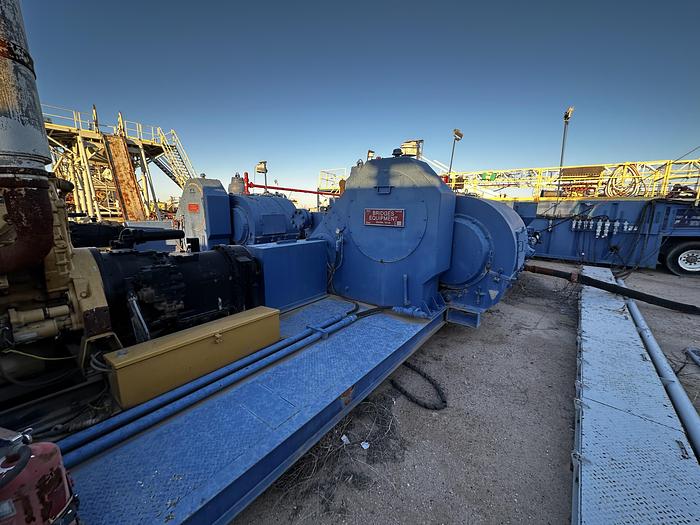

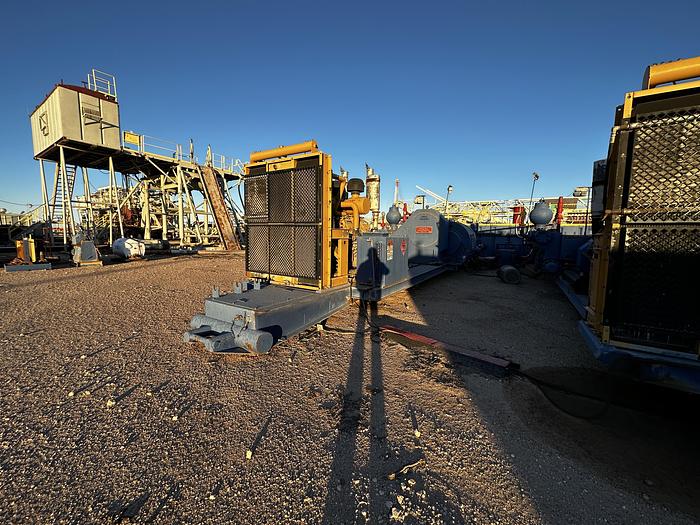

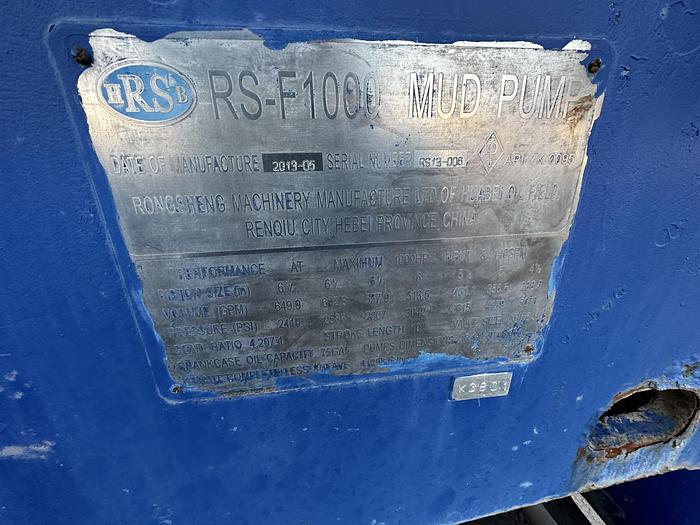

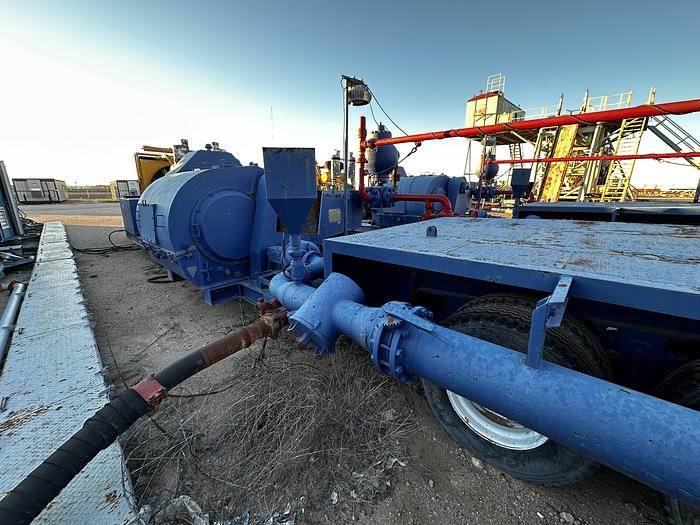

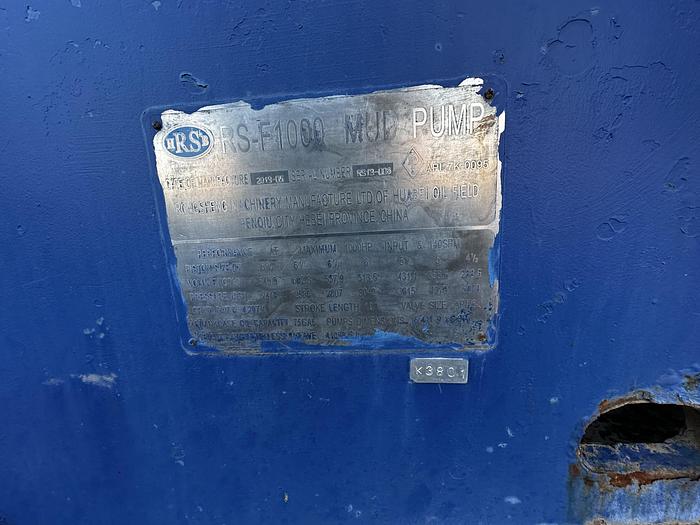

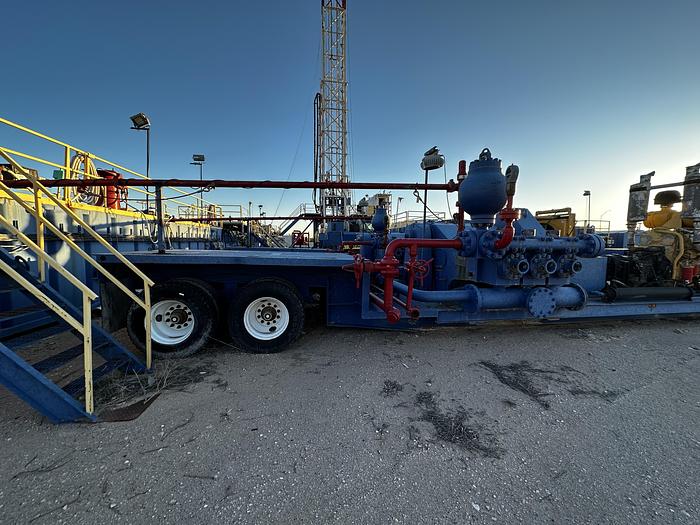

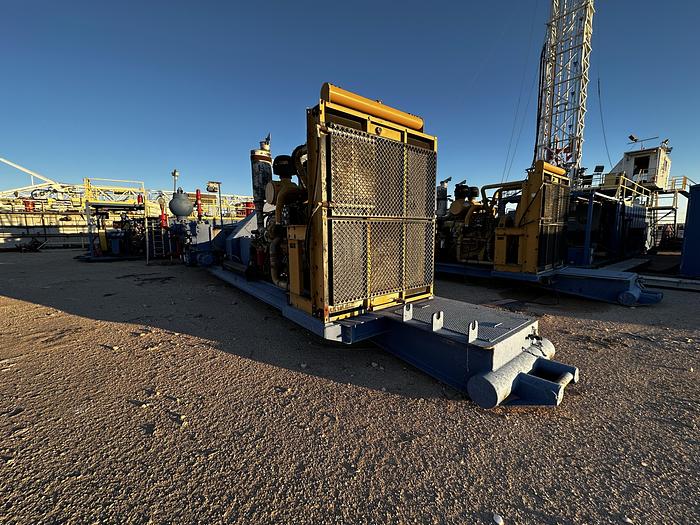

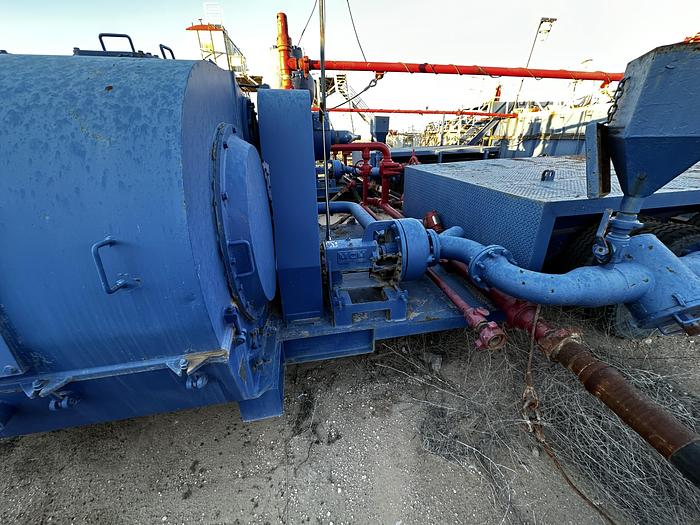

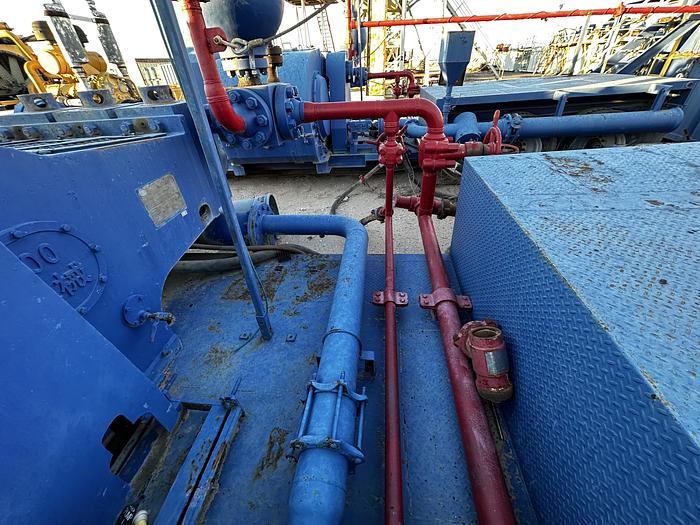

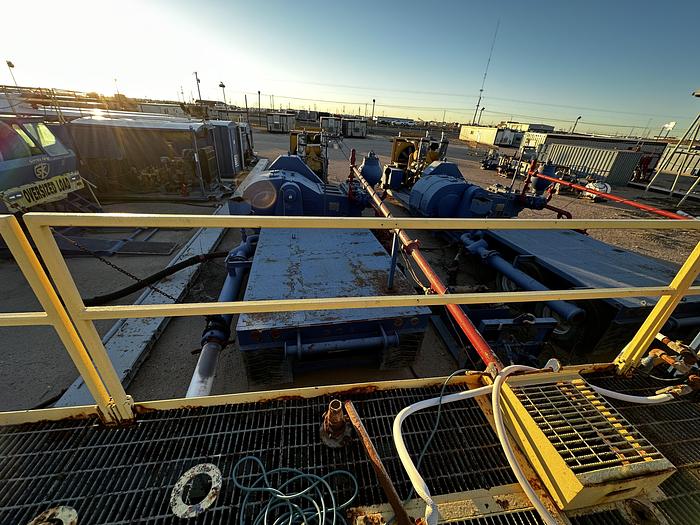

Mud Pumps (On Axles):

#1 – RS F1000

#2 – RS F1000

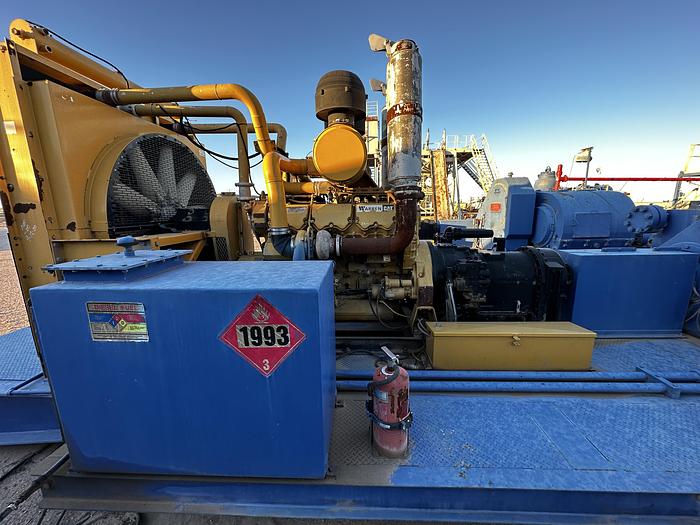

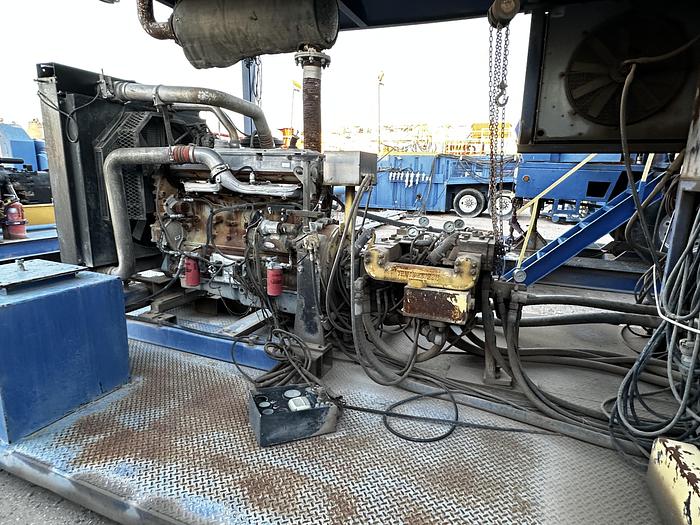

Power:

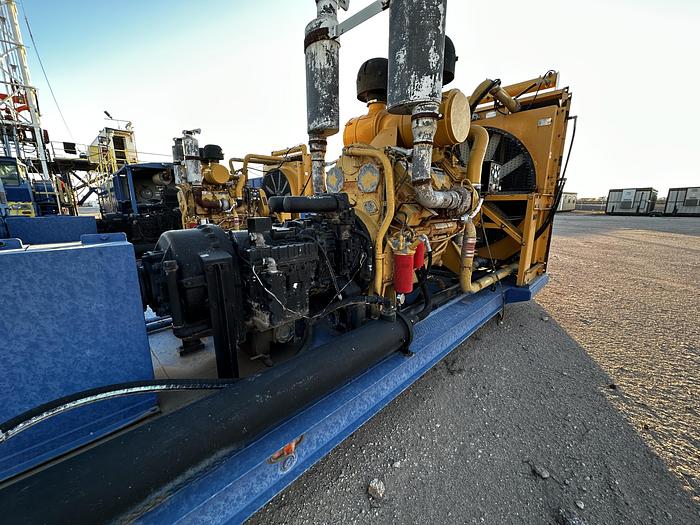

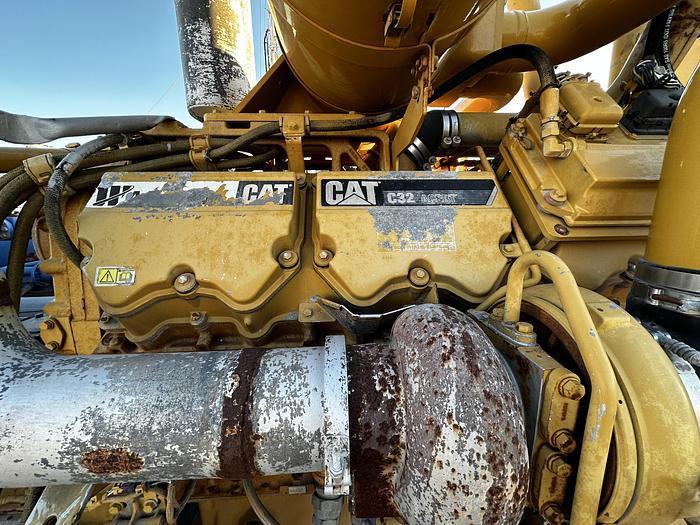

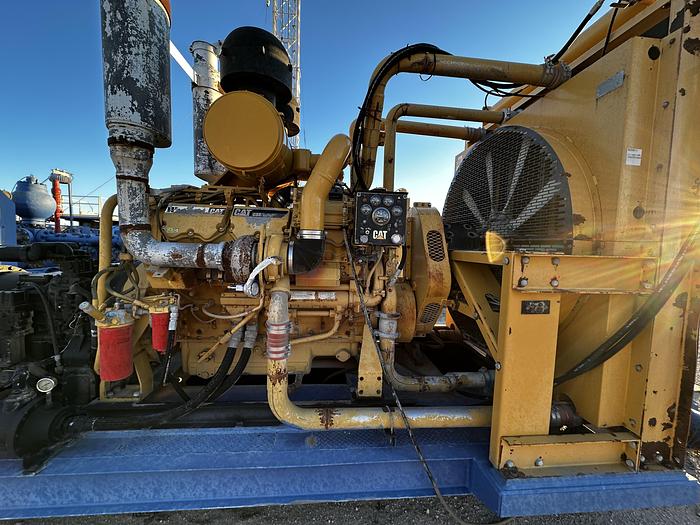

2 – 1000 HP Cat C-32 Acert Engines

Allison DP8962 Transmissions

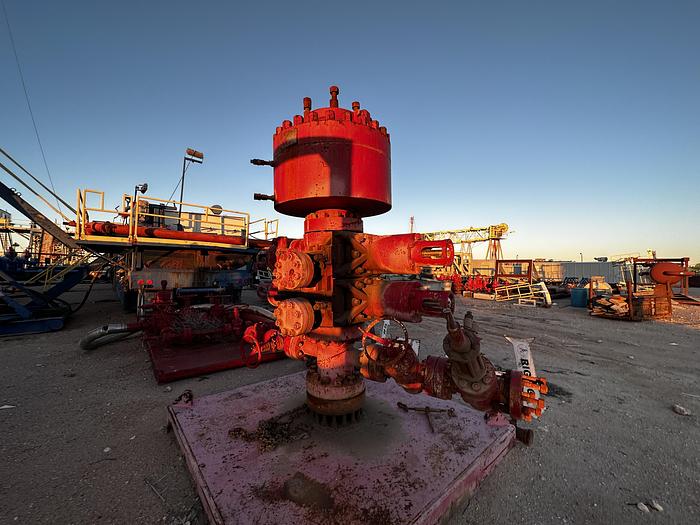

Annular Preventer:

Hydril Copy, 11” X 5,000 psi

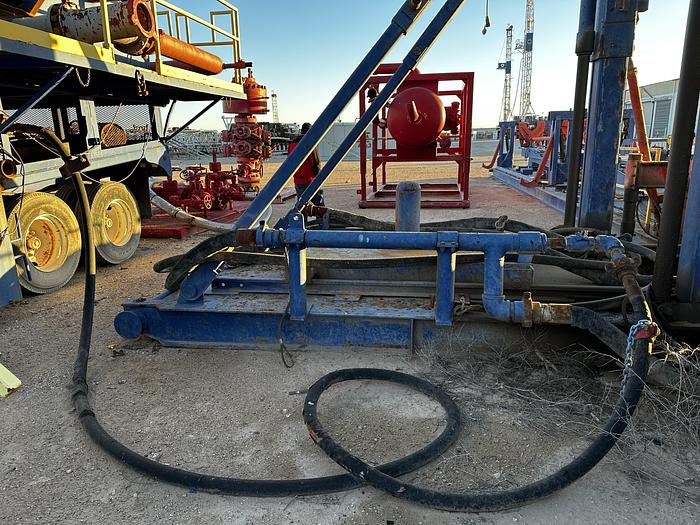

Ram Preventer:

Schaffer LWS Copy Double Ram

11” X 5,000 psi

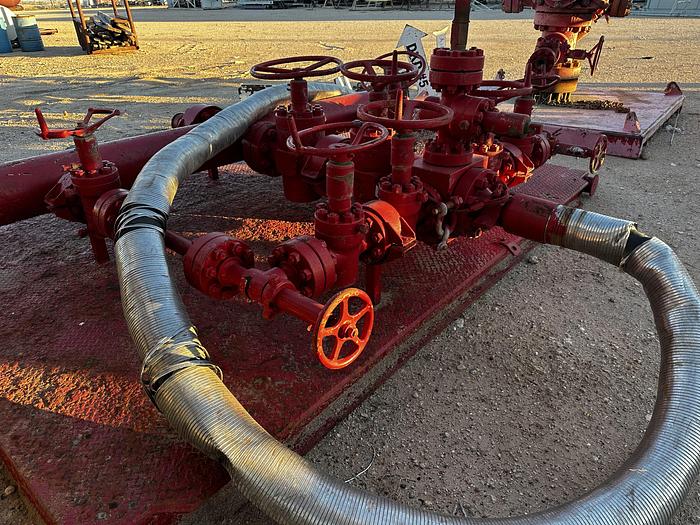

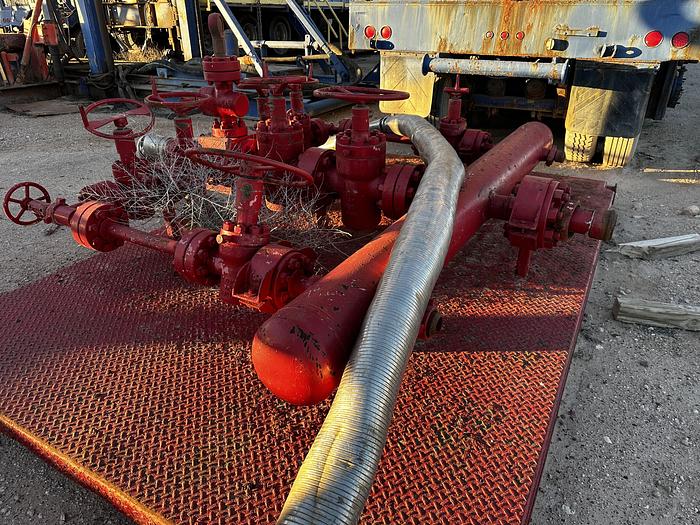

Choke Manifold:

4 1/16” X 5,000 psi w/Buffer Tank

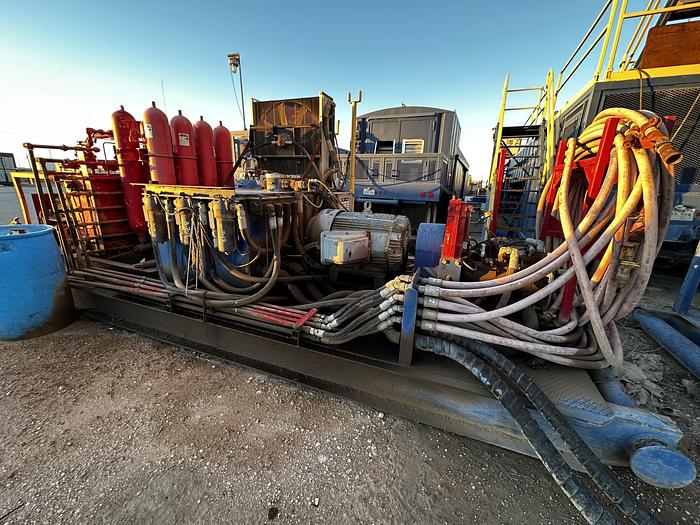

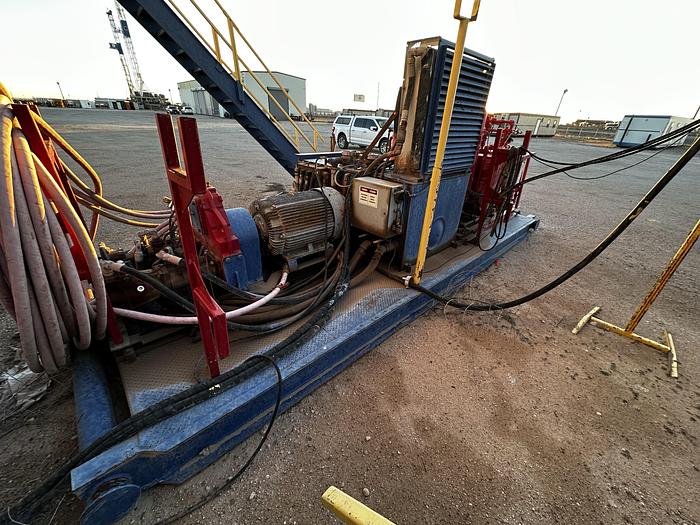

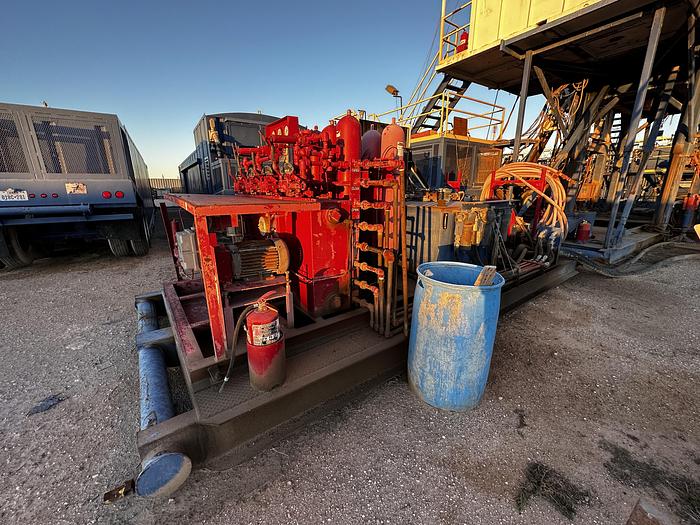

Accumulator System:

Cameron 4 Station

Remote Panel on Rig Floor

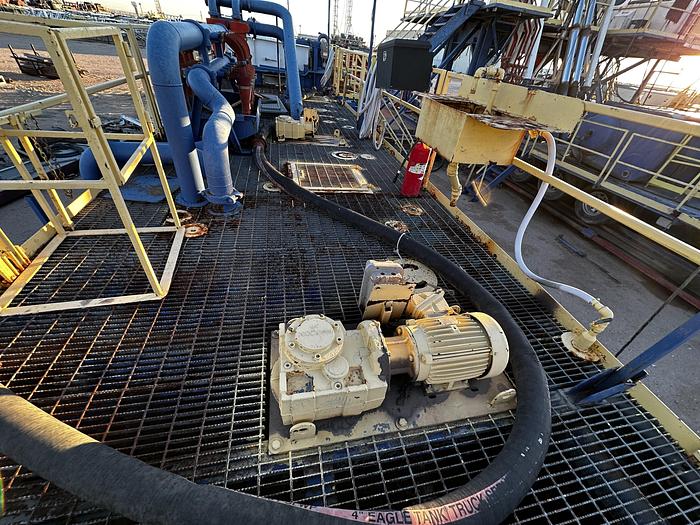

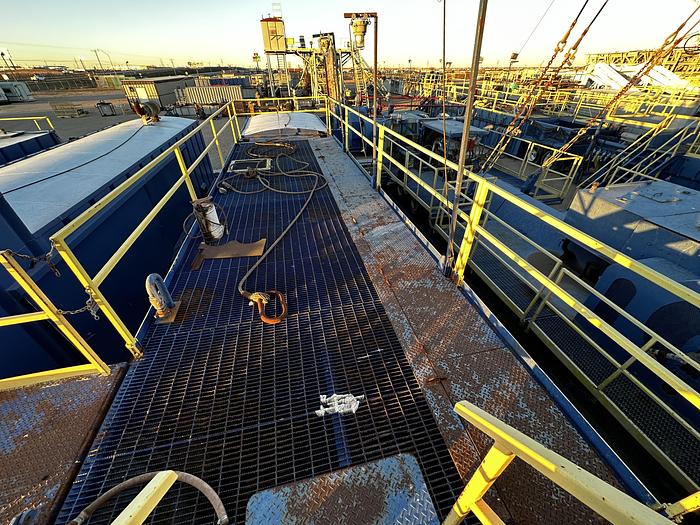

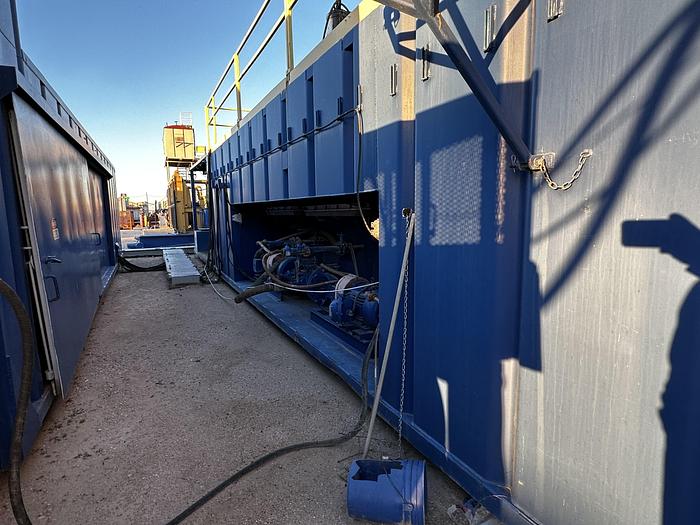

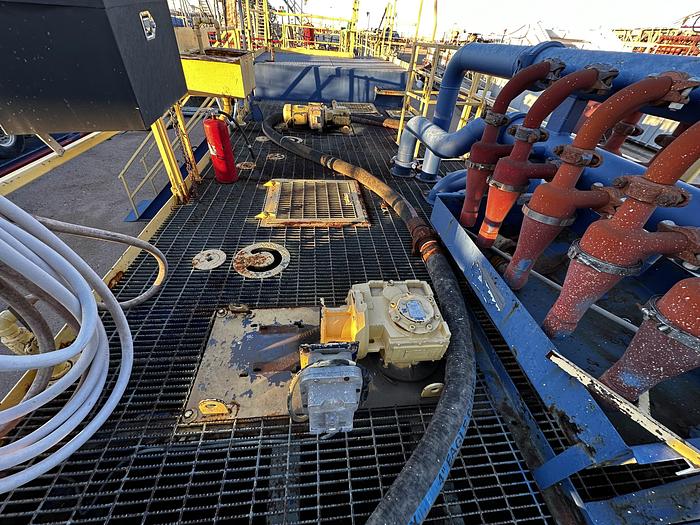

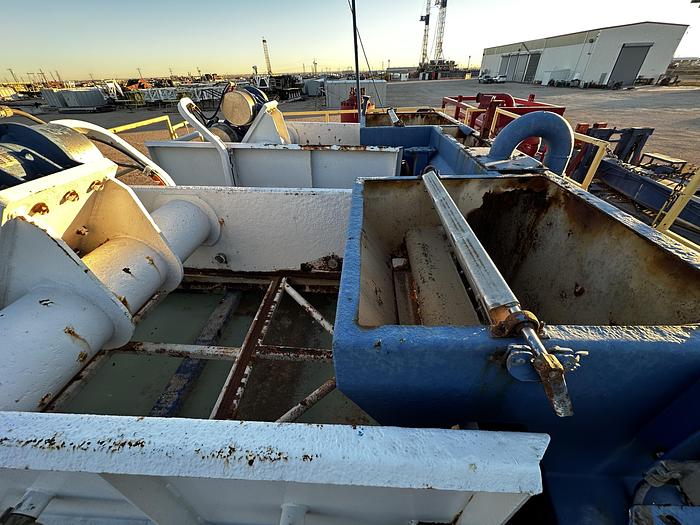

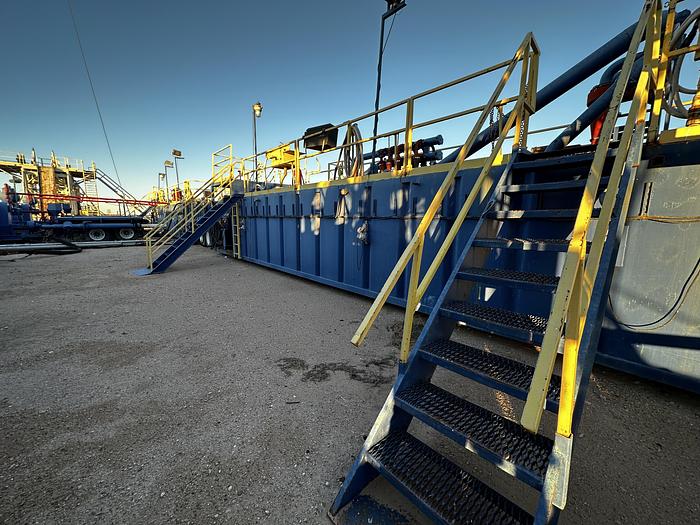

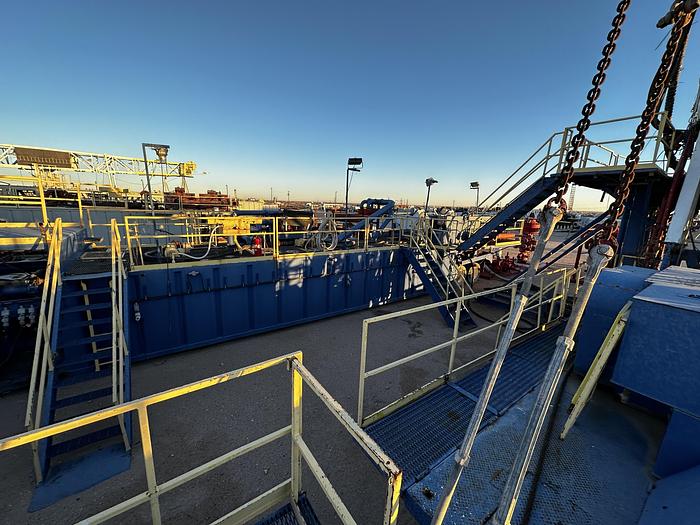

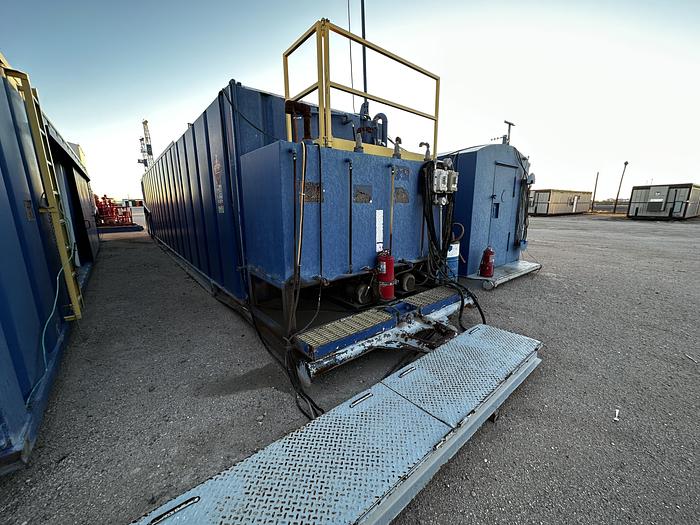

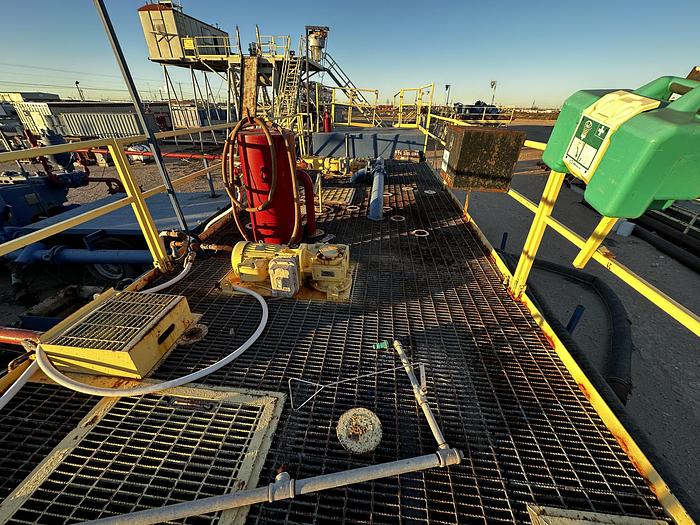

Mud System (On Axles):

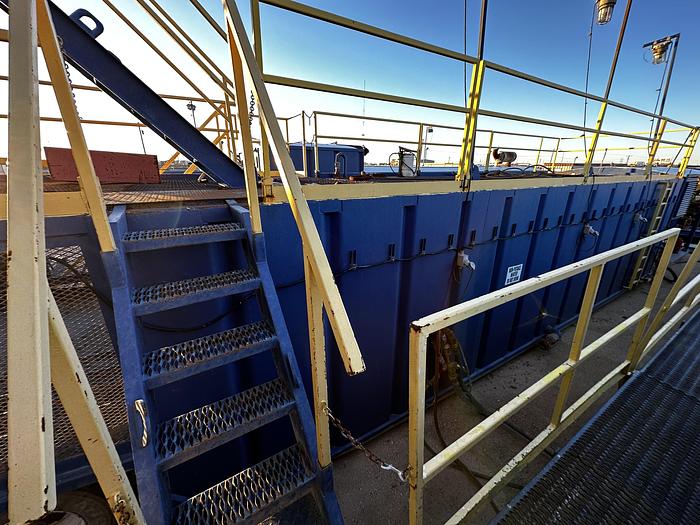

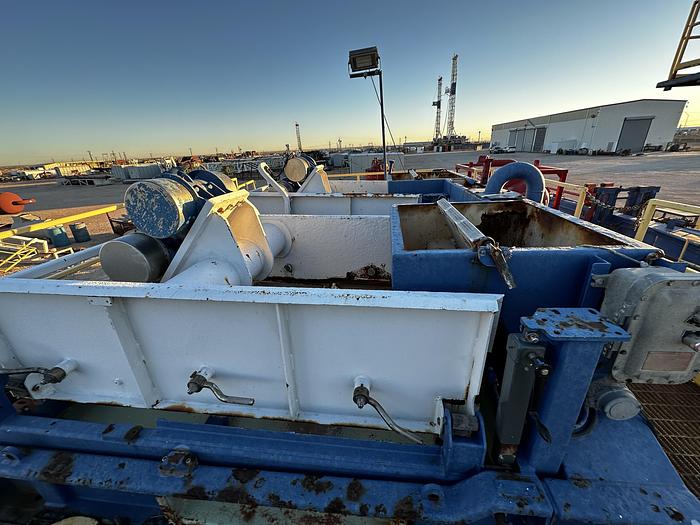

800 BBL Pit System 2 – Ruff Shakers

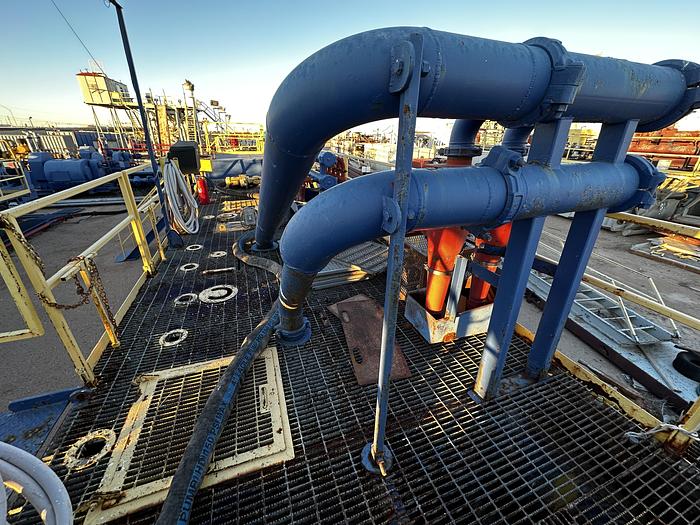

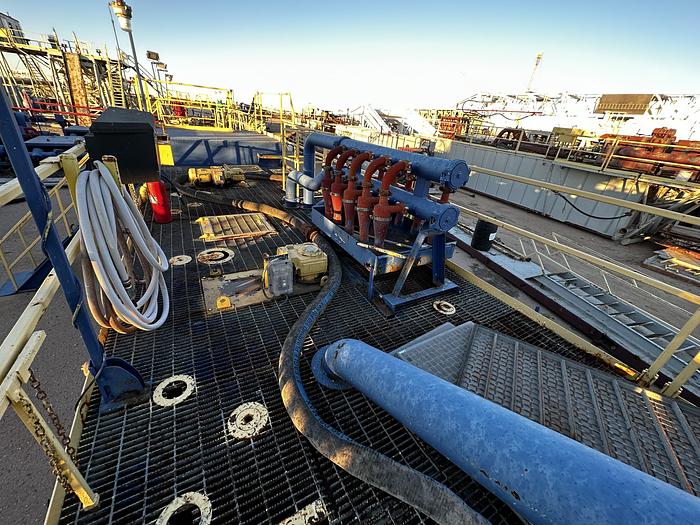

PSI 2 Cone Desander PSI 16 Cone Desilter

Water Tank (On Axles):

500 BBL

Diesel Tank (On Axles):

6,700 Gallons Fuel Tank 4 Station Lube Center Parts House

Auxiliary Equipment:

Automatic Driller

OWI Survey Machine Trolley System for BOP

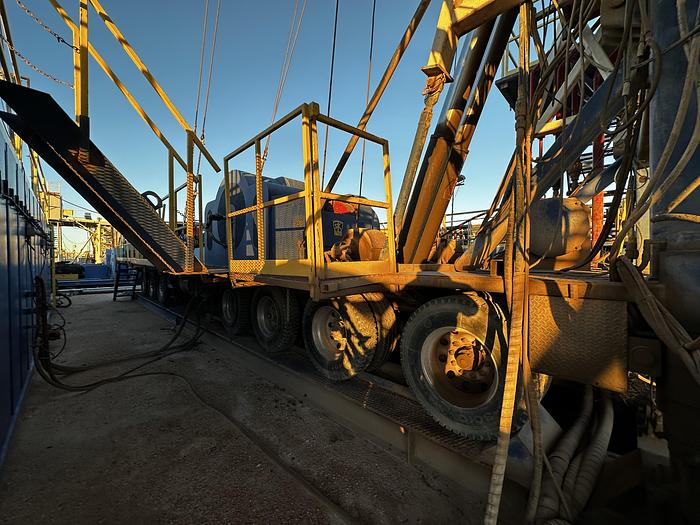

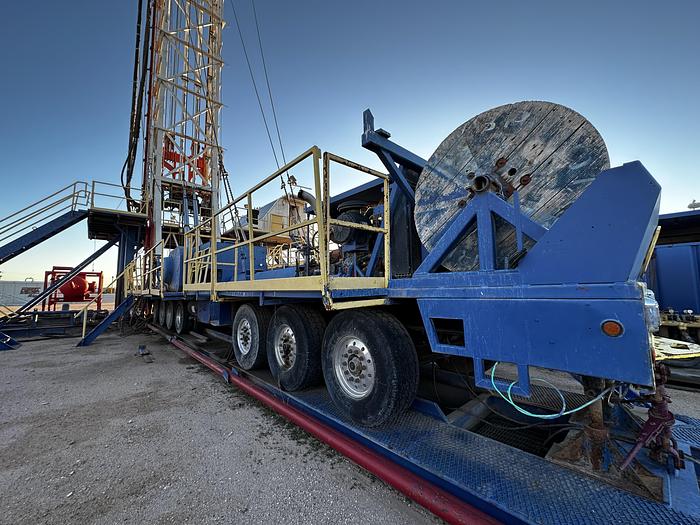

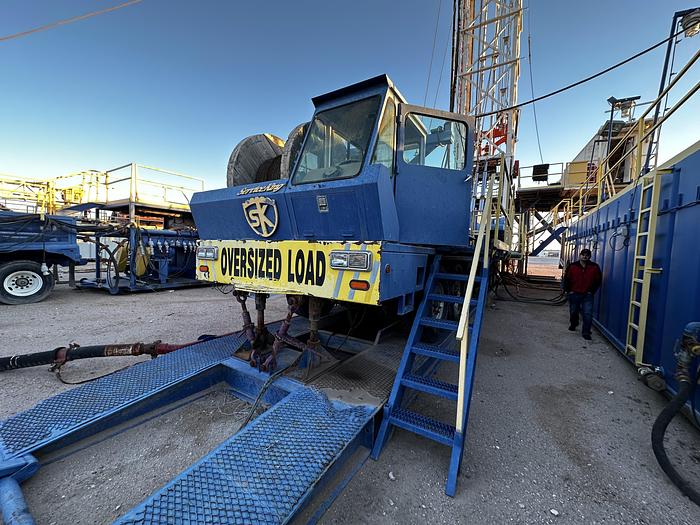

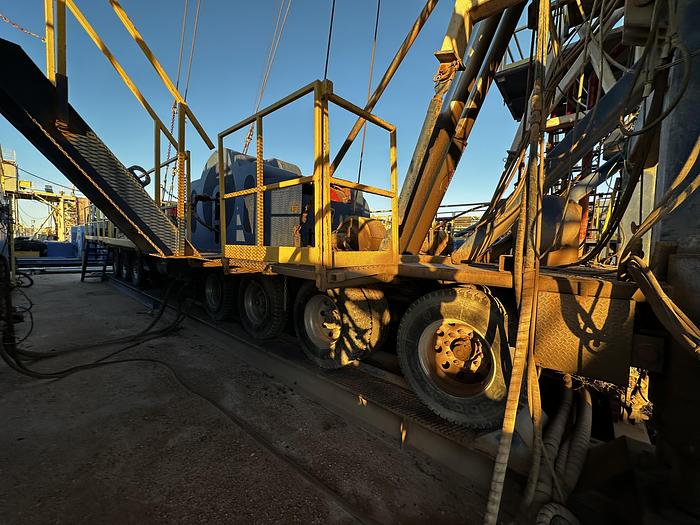

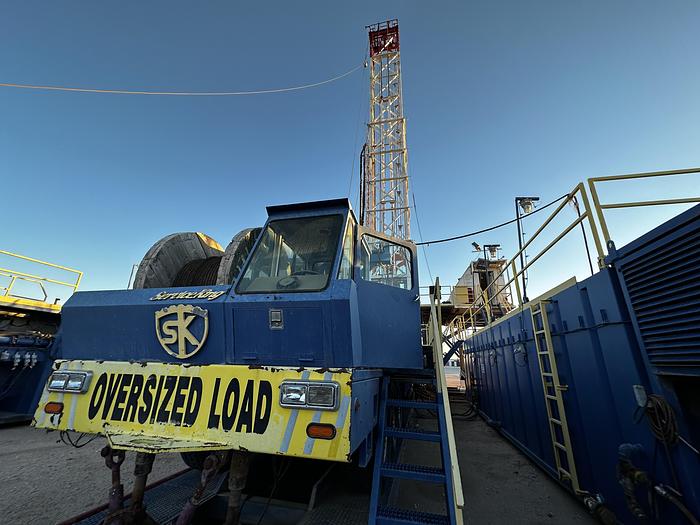

*DRAW WORKS AND MAST MOUNTED ON A SK775 SELF-PROPELLED CARRIER
