2011 Bridges Equipment MI-1300hp Mechanical Drill Rig

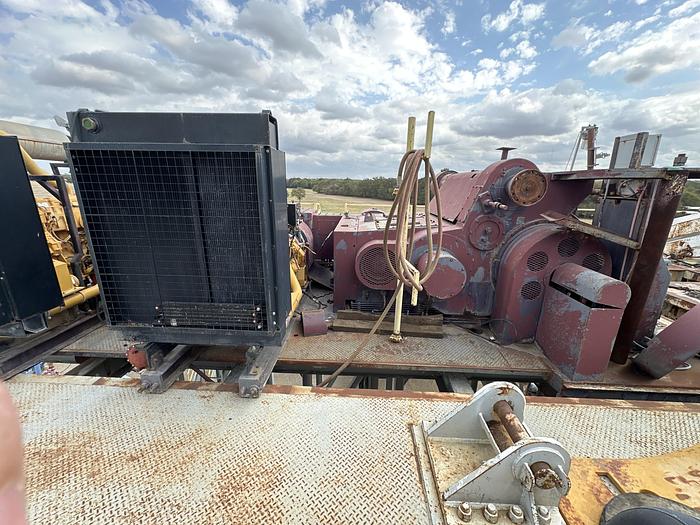

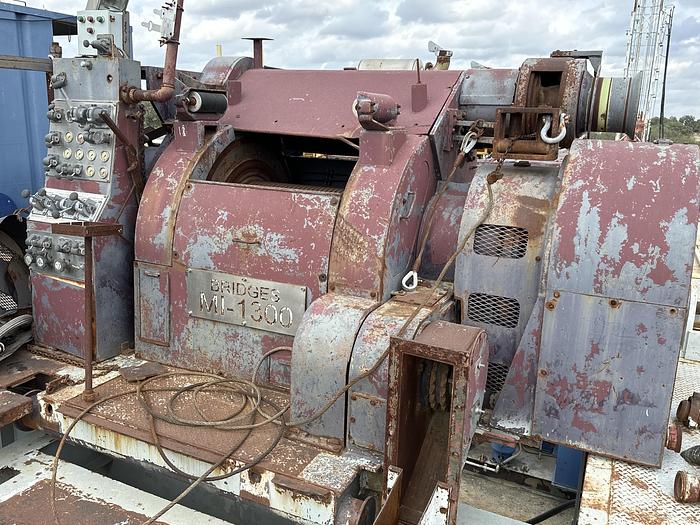

Draw Works:

Bridges MI-1300, 1,300 HP

Power:

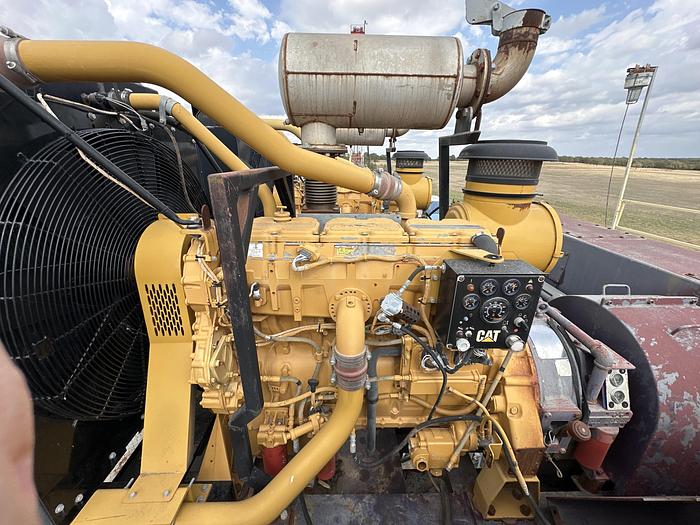

2- 630 HP Caterpillar C-18

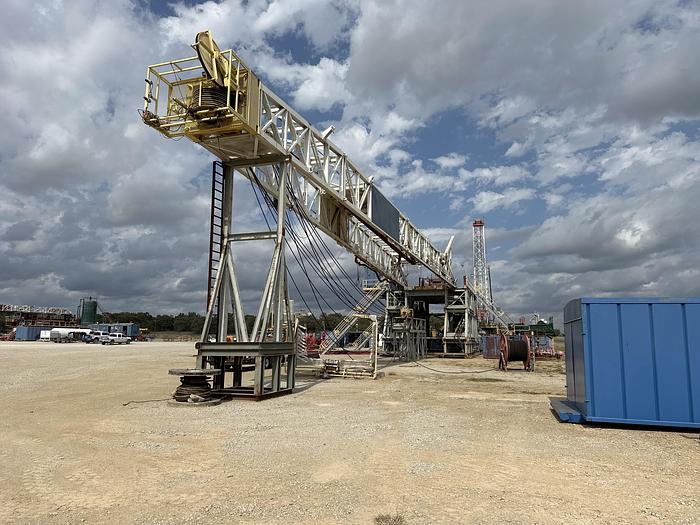

Mast:

136’ 750,000 # Cantilever Mast

Substructure:

23’x50’ Box on Box on Box

750,000 # Rotary Capacity

450,000 # Setback

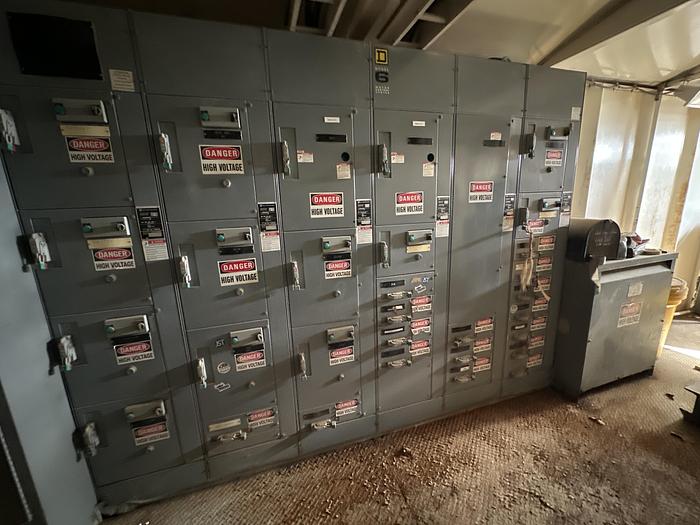

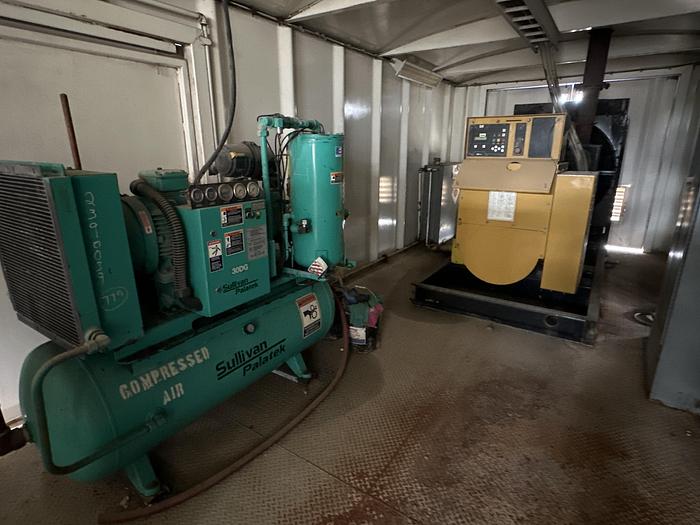

Electrical Power System:

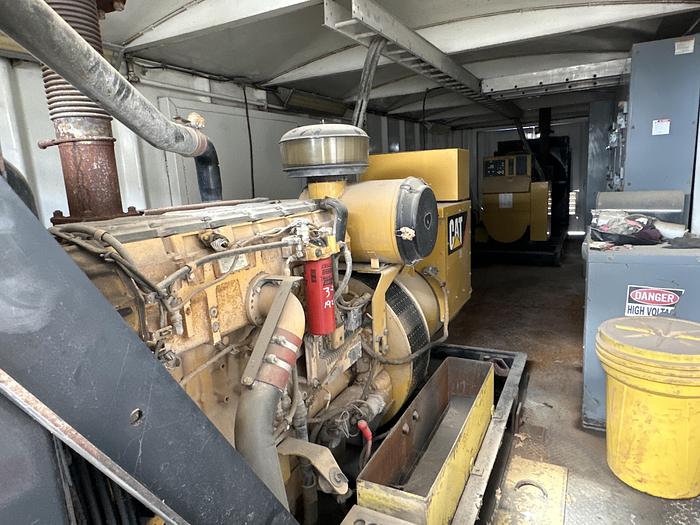

2 – Magnamax 380 KW/60hz Cat C15

Sullivan Palatek Air Compressor

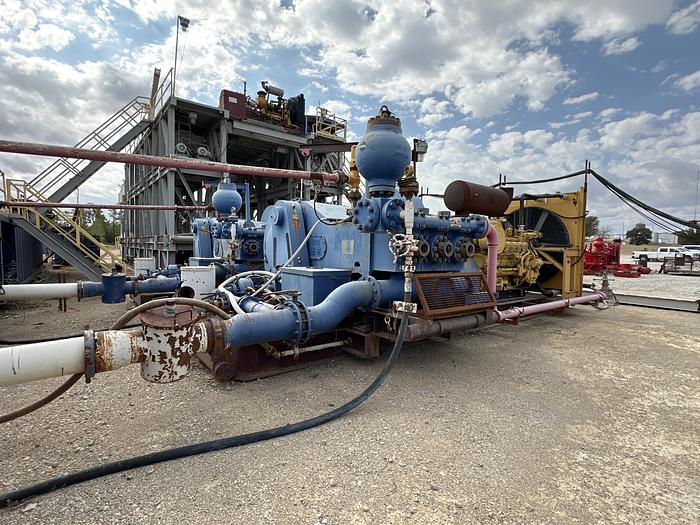

Mud Pumps:

#1 – RS F1600

#2 – RS F1600

Power:

Caterpillar 3512-C Engines (1854 HP)

Annular Preventer:

Hydril Copy, 11” X 5,000 psi

Ram Preventer:

Schaffer LWS Copy Double

Ram 11” X 5,000 psi

Choke Manifold:

4-1/16” X 5,000 psi

Accumulator System:

12 Bottle 6 Station

Remote Panel on Rig Floor

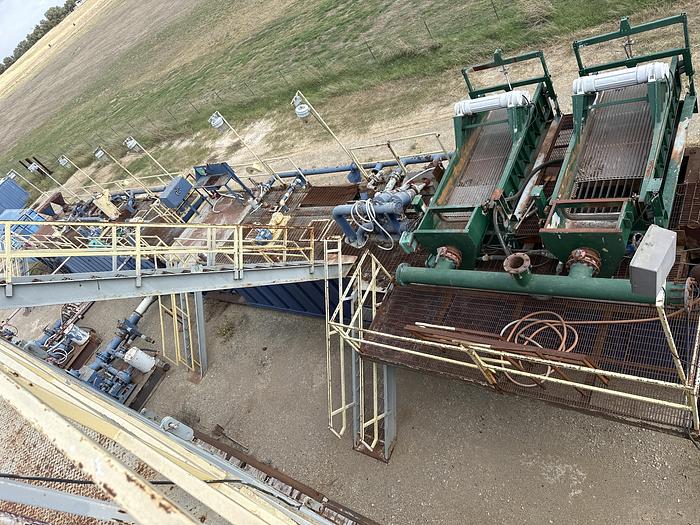

Mud System:

1,000 BBL Pit System

2 – Derrick 504 Super G Shakers

PSI 2 Cone Desander

PSI 16 Cone Desilter

Water Tank:

2-500 BBL Tanks

Diesel Tank:

10,000 Gallons Fuel Tank

5 Station Lube Center

Auxiliary Equipment:

Automatic Driller

OWI Survey Machine

Recertified 2018

More Pictures/Diagrams/Drawings Available Upon Request
