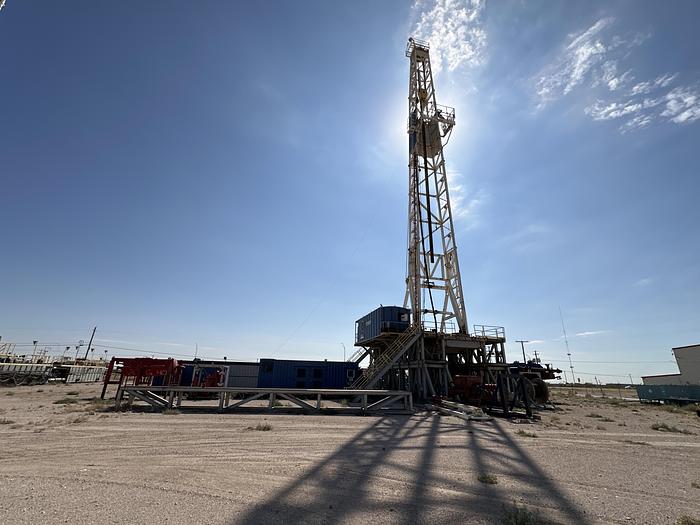

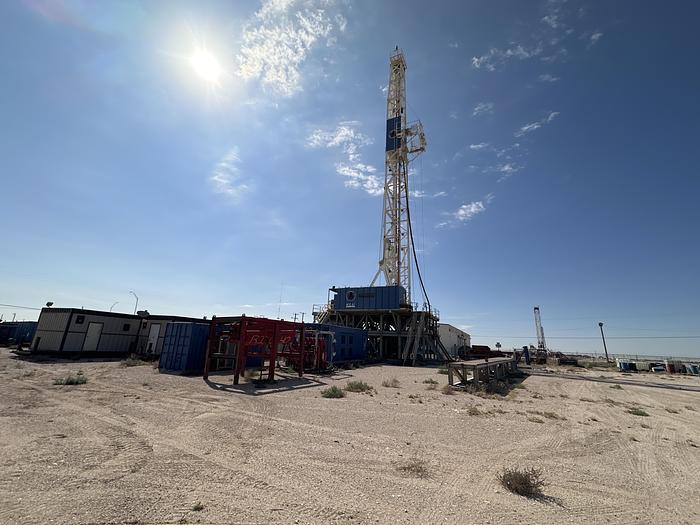

2011 Bridges Equipment MI-1300hp Mechanical Drill Rig

Bridges Equipment 1300HP Mechanical Drilling Rig

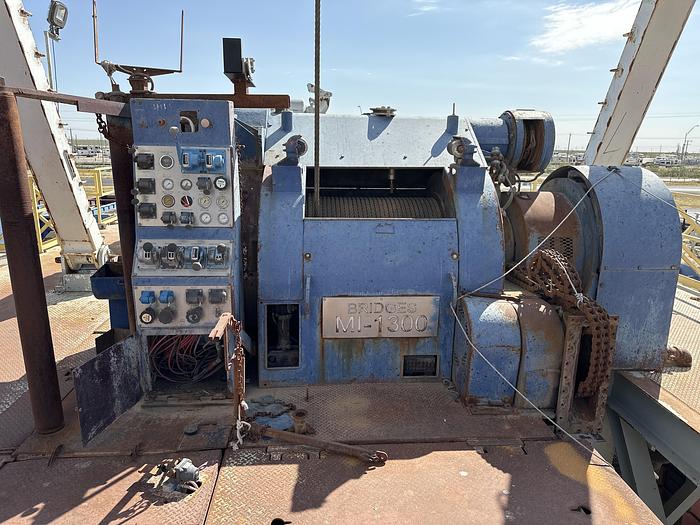

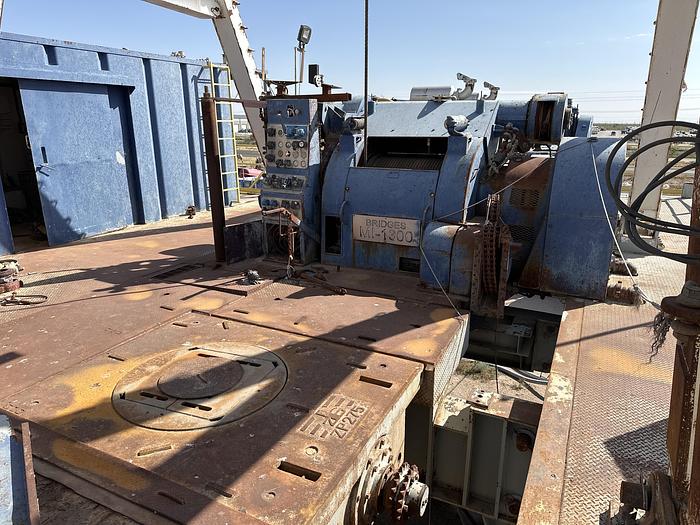

Draw Works:

Bridges MI-1300, 1,300 HP

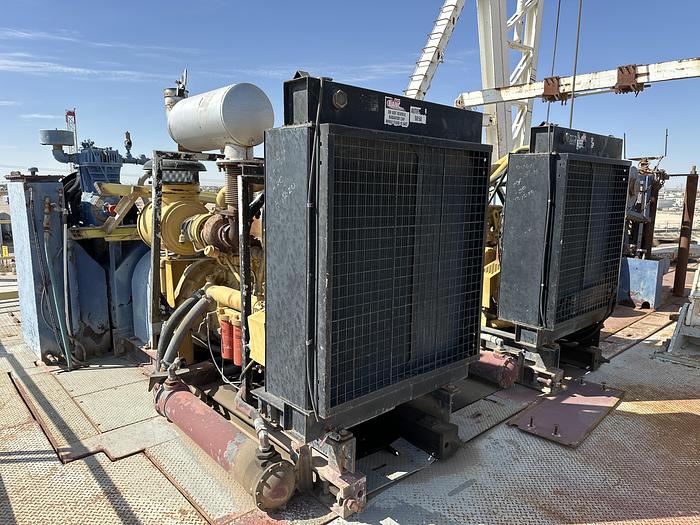

Power:

2- 630 HP Caterpillar C-18

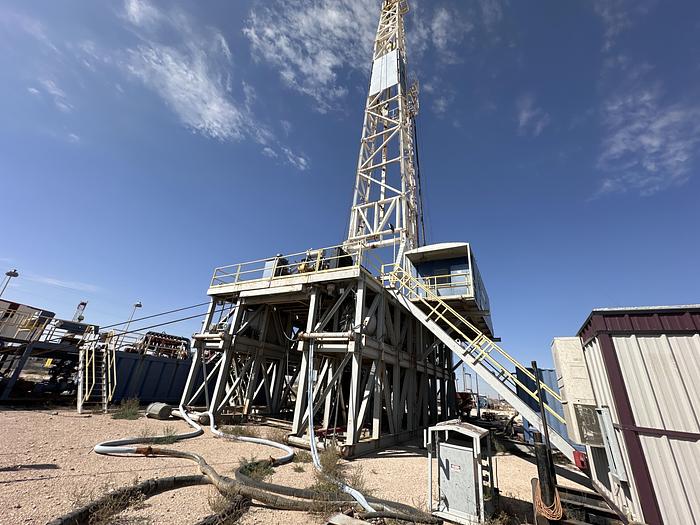

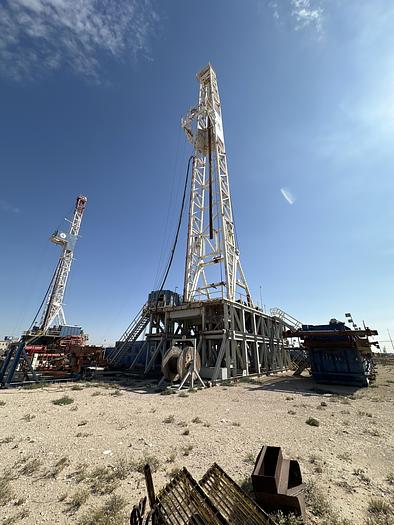

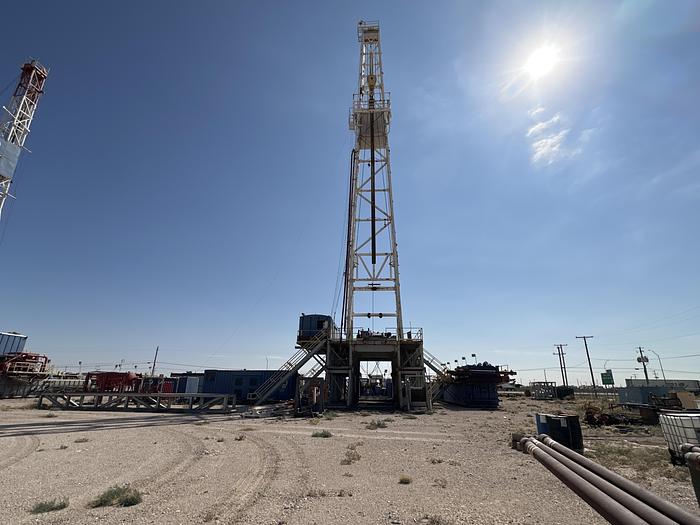

Mast:

136’ 750,000 # Cantilever Mast

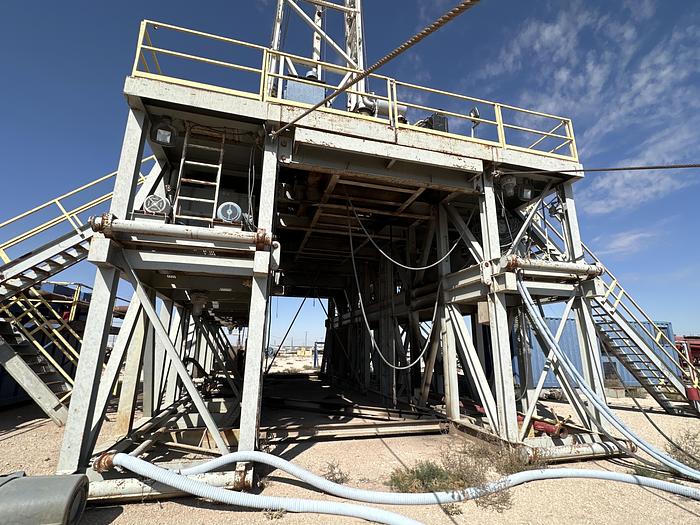

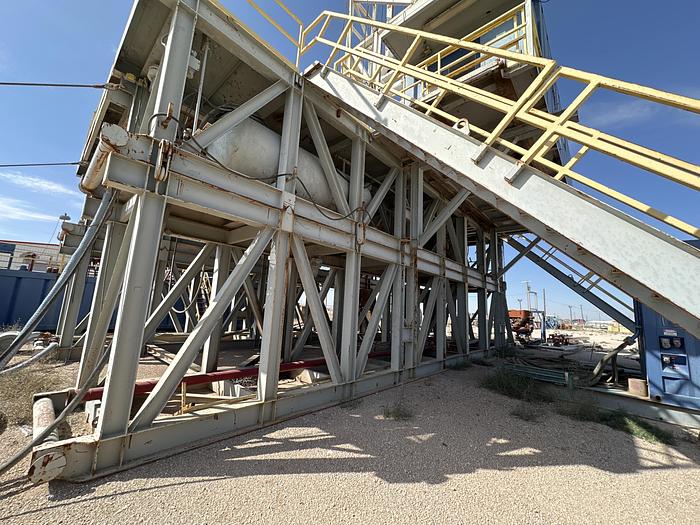

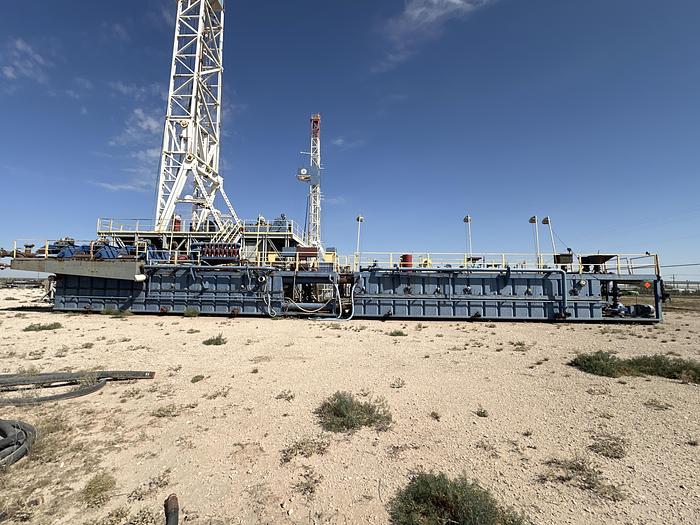

Substructure:

18’x50’ Box on Box

750,000 # Rotary Capacity

450,000 # Setback

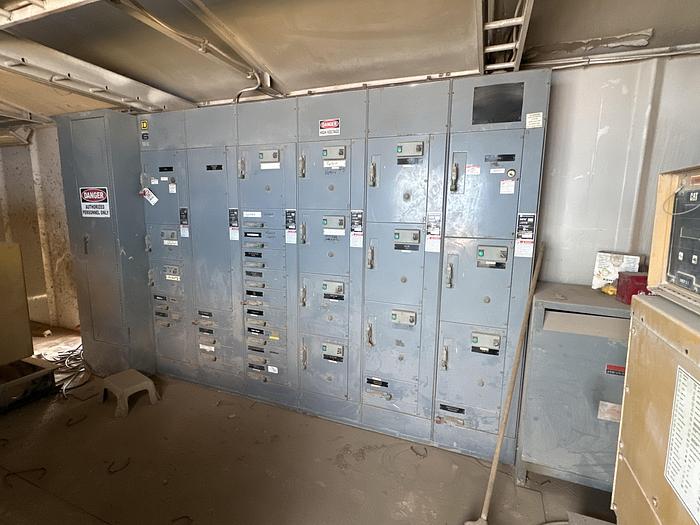

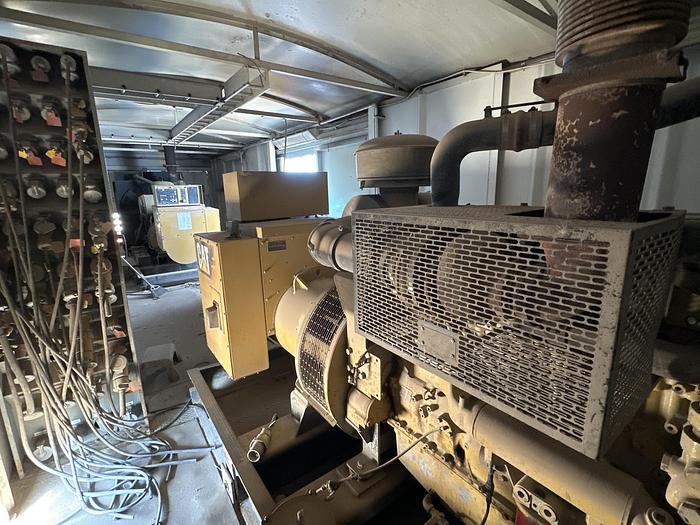

Electrical Power System:

2 – Magnamax 380 KW/60 SeriesDetroit

Sullivan Palatek Air Compressor

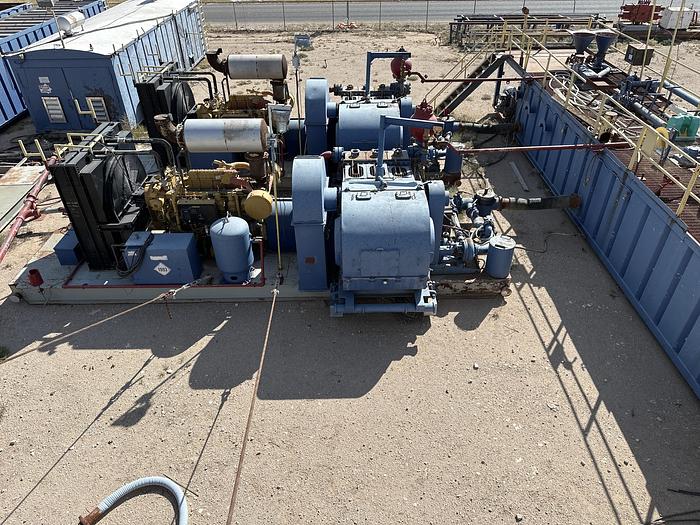

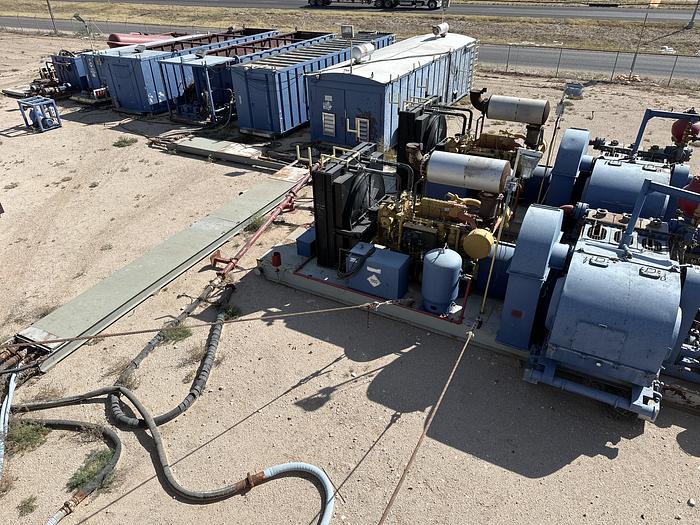

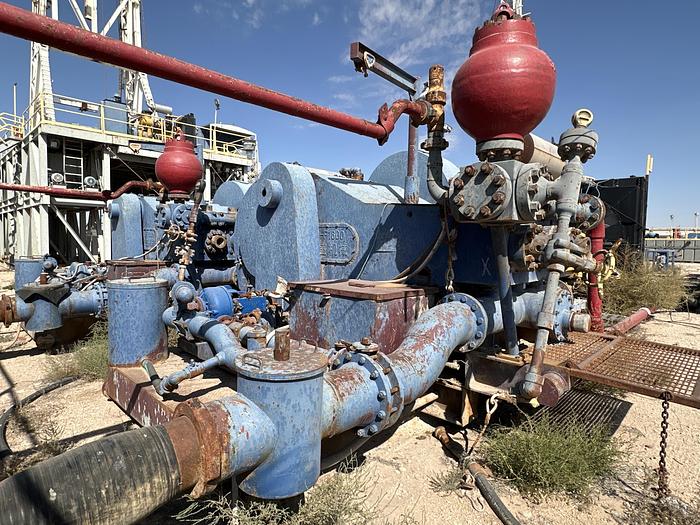

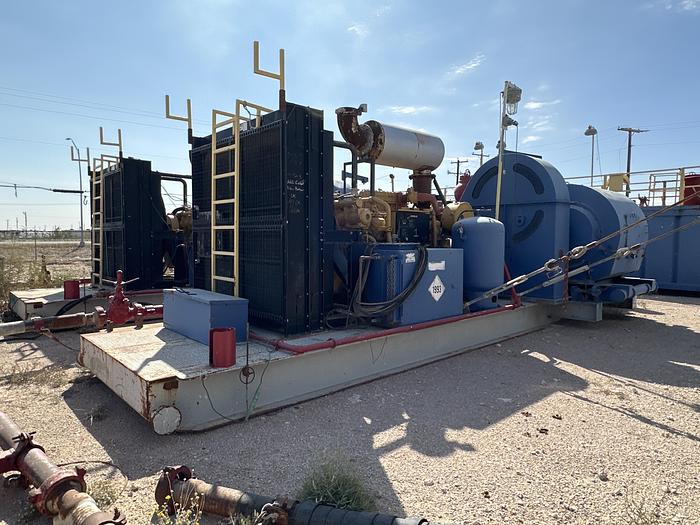

Mud Pumps:

#1 – RS F1600

#2 – RS F1600

Power:

Caterpillar 3512 Engine (1854 HP)

Annular Preventer:

Hydril Copy, 11” X 5,000 psi Ram

Preventer:

Schaffer LWS Copy Double

Ram 11” X 5,000 psi

Choke Manifold:

4-1/16” X 5,000 psi

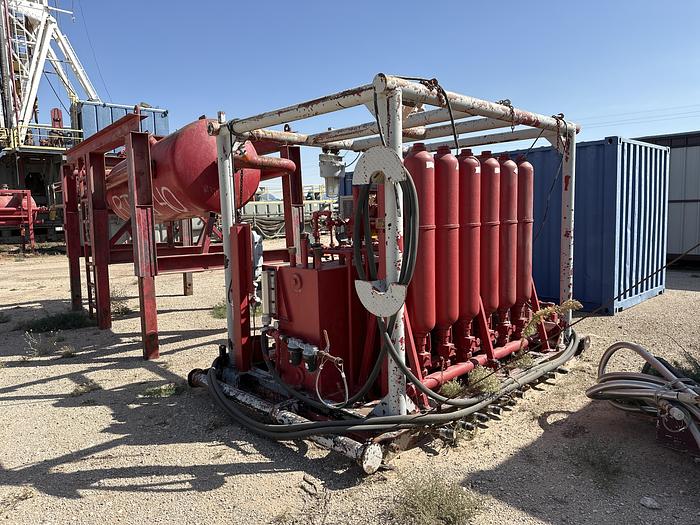

Accumulator System:

12 Bottle 6 Station

Remote Panel on Rig Floor

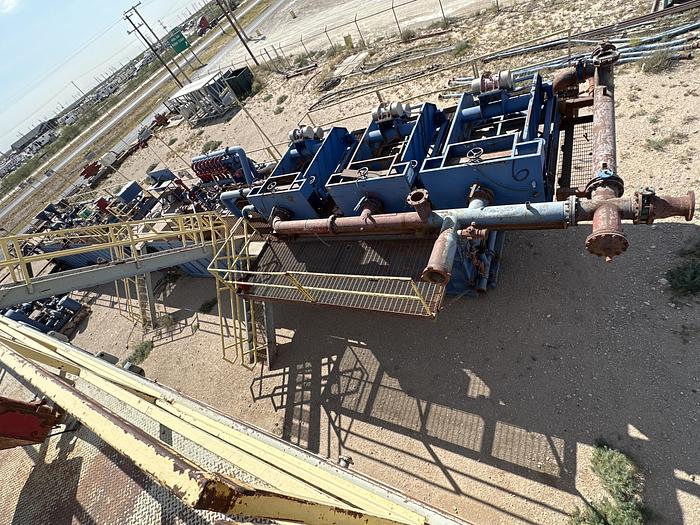

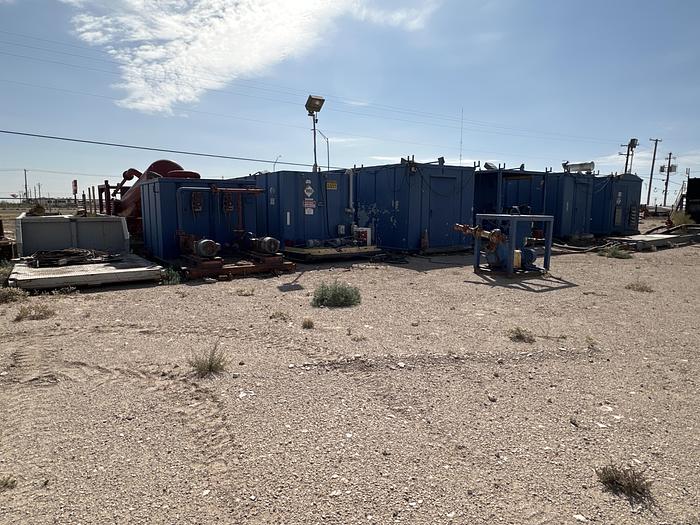

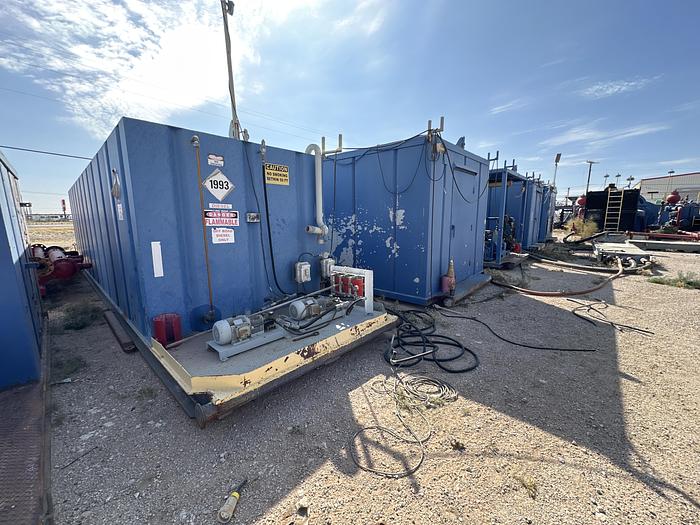

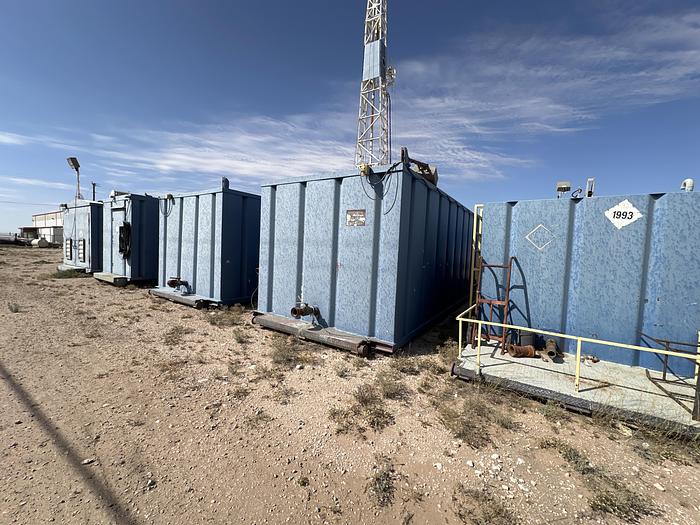

Mud System:

1,000 BBL Pit System

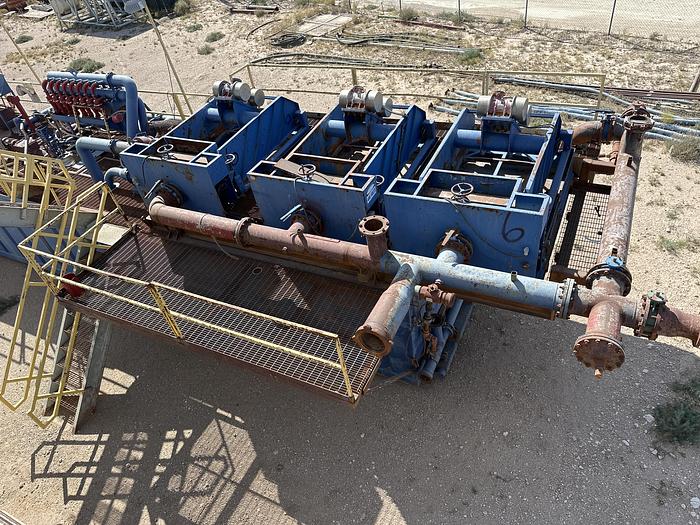

3 MCM 300 Shakers

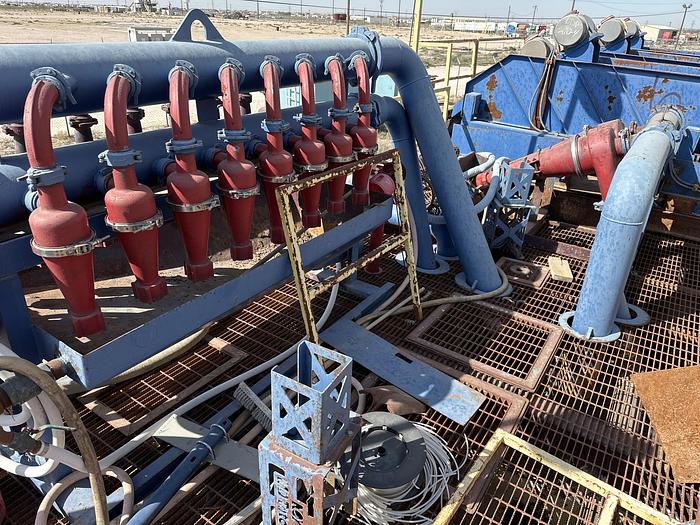

PSI 2 Cone Desander

PSI 16 Cone Desilter

Water Tank:

2-500 BBL Tanks

Diesel Tank:

10,000 Gallons Fuel Tank

5 Station Lube Center

Auxiliary Equipment:

Automatic Driller

OWI Survey Machine
