2012 Service King SK 1000HP Trailer Mounted Drill Rig

Newly Refurbished!! Re-Certified 2023! Field Ready!

Service King SK1000HP Drilling Rig Specs

2012 Model

Remanufactured, Recertified, 2023

Carrier:

• (5) Axel / Trailer Mount, Model 1000

• SK#: 395T

• Gross Weight: 177,900 lbs

• Date: 3/2012

• VIN: 1S90TDD85CL976333

• (1) Electric Drive Hydraulic Pump

• (2) Oil Saver Hydraulic Filters

Crown:

• (4) Sheave McKissick, 1 ¼”

• Date: 1/2012

• SHL: 450,000#

• S/N: DK504

• Cluster Model: 744-1, 1 1/8” Line, 36” Sheaves

• Fast Line Model: 741-1, 1 1/8” Line, 42”, 40 Tons

• Sand Line Model: 741-1, 1.12” Line, 30” Sheave, 40 Tons

• Dead Line Anchor Model: 741-1, 1 1/8” Line, 30” Sheave

Engines:

• Engine #1: Detroit 2010 Model, 14.0 Litre, Allison Transmission, S/N: 06R1049132

• Engine #2: Detroit 2010 Model, 14.0 Litre, Allison Transmission, S/N: 06R1049335

• (1) Hydraulic Tank – 350 Gallons

Drawworks:

• Model: 46 x 10, S/N: DW 2387

• Transmission Model: 1000, S/N: 5962350, S/N: 5962688

• Power Drive Gear Box: 2.47 x 1

• Dual Actuated Air Band Brake, Hydraulic Drum Brake, Air Actuated Crown Saver

• (2) Hydraulic Cat Heads – Make Brake, (1) Drillers Console

Mast:

• Model: 117ft, SHL 450,000#, S/N: DK 504

• (3) Hydraulic Raising Cylinders

• Top Drive Torque Track, Kelly Hose, Stand Pipe 5000 PSI with 5000 PSI Type D MSF

Mud Gauge S/N: 41814

• (3) 5000 PSI Oteco Shut Off Valves

• Finger Board – (22) Fingers

• (1) Sentry Block / Hook Combo Model SI-BH-250, 36” Sheave Size Line 1 ¼”, S/N: 07054,

Date:

2007

• (2) Air Hoist Lines

• Fully Rigged for Safety Cable

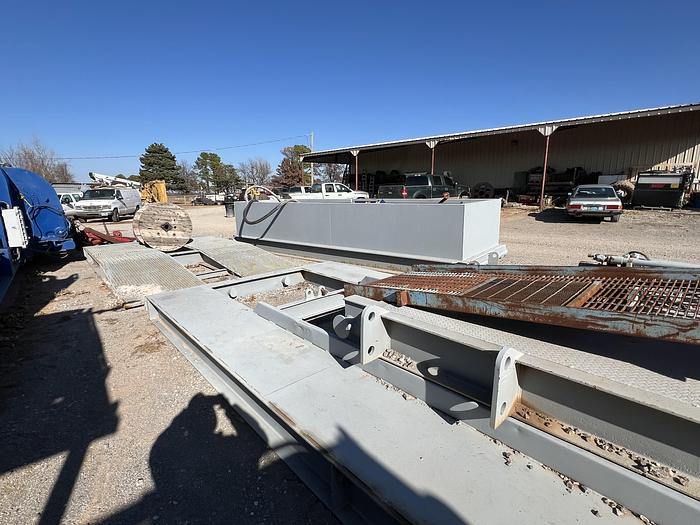

Substructure:

• 35ft Long x 11ft Wide, hydraulically Raises to 18ft

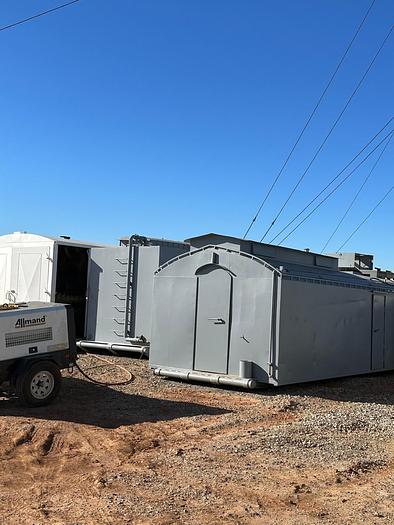

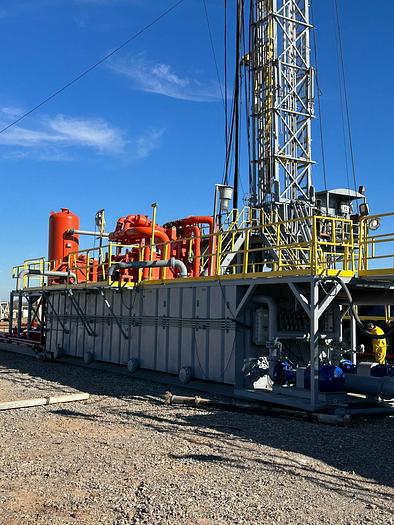

Mud Pits:

• (2) Pit System – 950 BBL

• Shaker Pit: (2) Compartments, (2) Swaco Mongoose Shakers, S/N: PF 2664, S/N: PF 2663

• (1) Mongoose Mud Cleaner with Desander Model: 2-12, S/N: 21963, S/N: 4500732

/www.PetroRigs.comwww.PetroRigs.com

Desilter, Model: 6T4, S/N: 23043

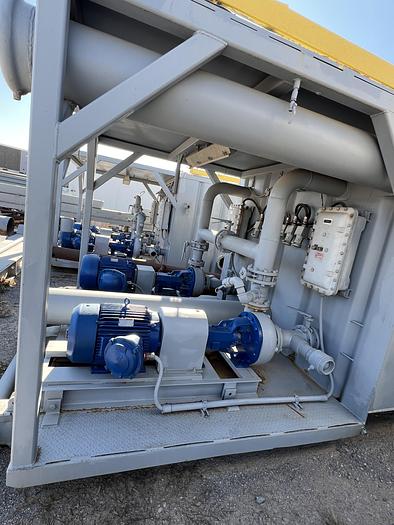

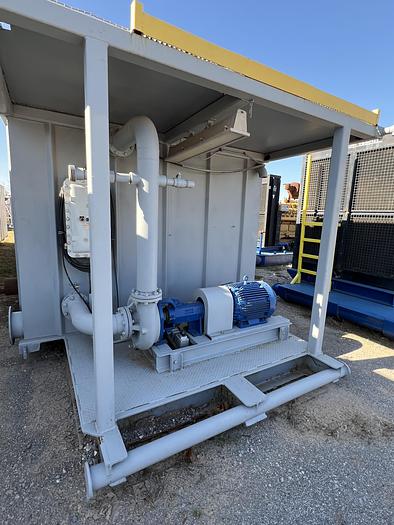

• (1) 5 Star 6 x 5 x 14 Cent Pump p/b 50 HP Electric motor

• Suction Pit: Full Set of Pit Lights, (2) Caustic Barrels, (4) 10 HP Agitators (4) Compartments

• (2) Prime Mud Movers – Mission Magnum 6 x 5 x 14 ea p/b 50 HP electric motors

Water Tank:

• 500 BBL

• (2) 25HP Mission Water Transfer Pumps x 4RS

Gas Buster:

• Swaco, Model: 2011, 4ft x 10ft, 6” Outlets, 6” Inlets, S/N: MGS-M-118 Skidded

Choke Manifold:

• (6) 4 x 5M, MGV – HECI

• (1) 2 x 5M, MGV – HECI

• (1) 2 x 5M Manual Choke – HECI, 3 Way Watermelon

Pill Pit:

• (1) Five Star 6 x 5 x 14 Cent Pump p/b 50HP electric motor w/(1) Hopper

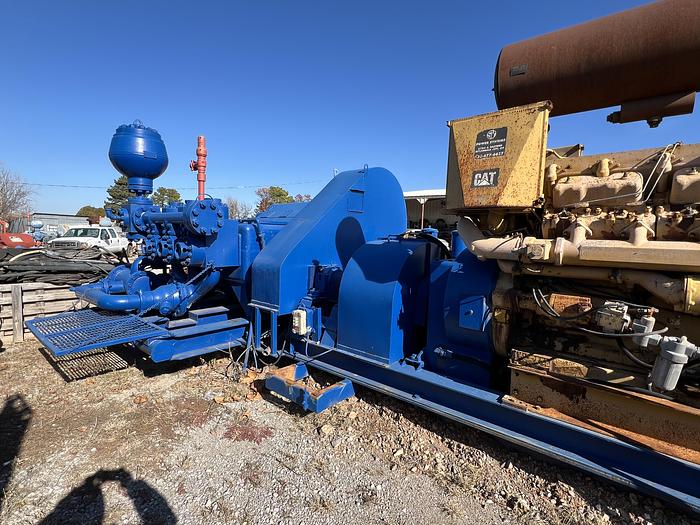

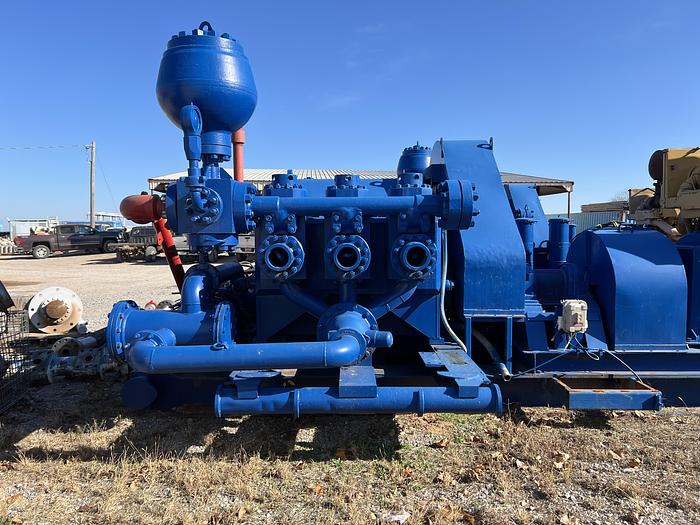

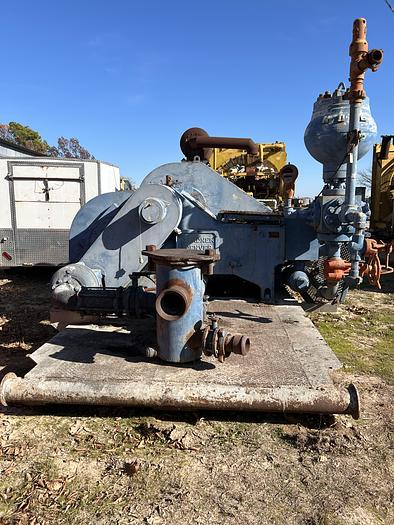

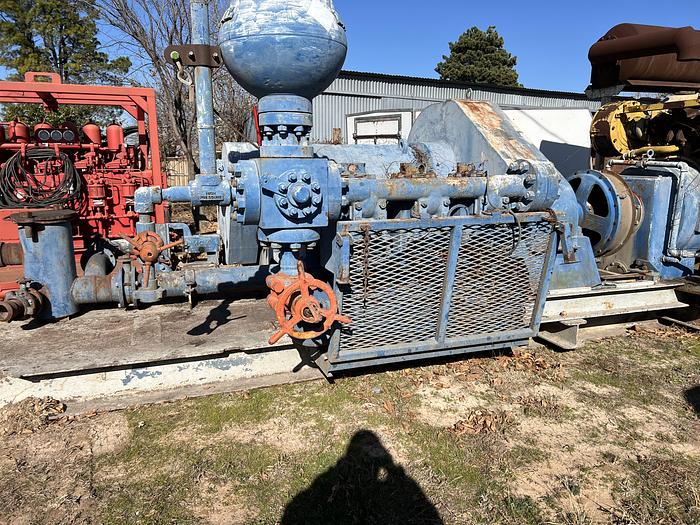

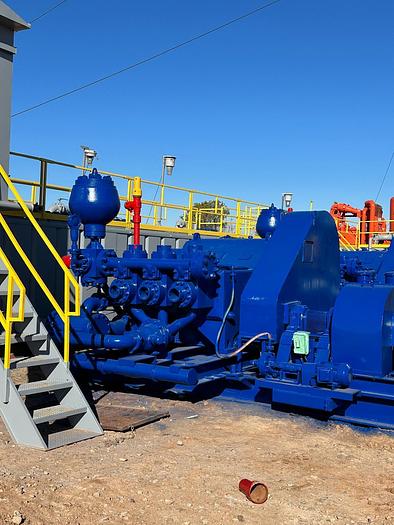

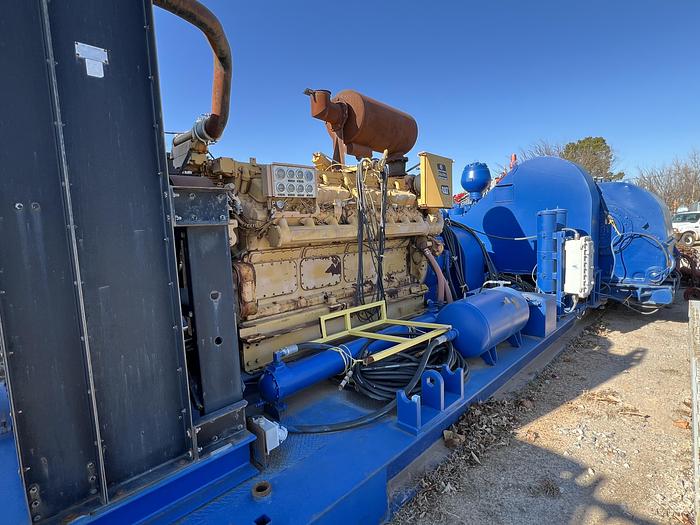

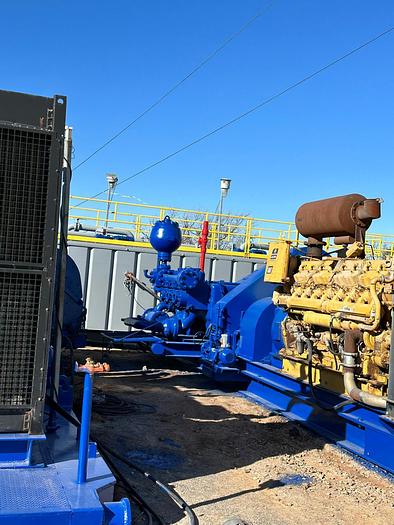

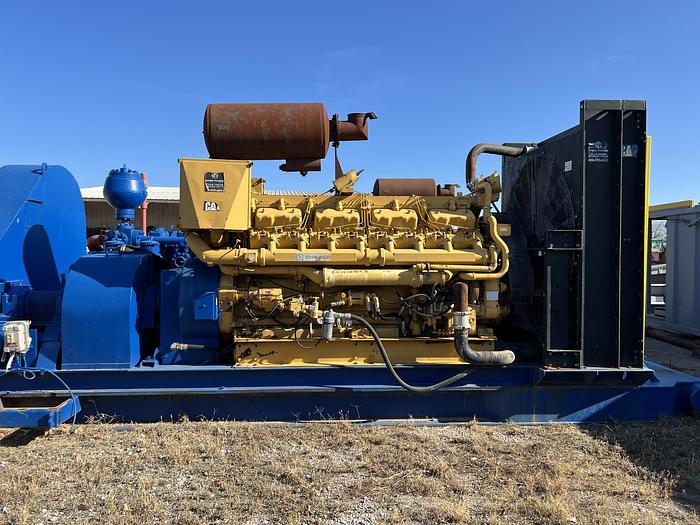

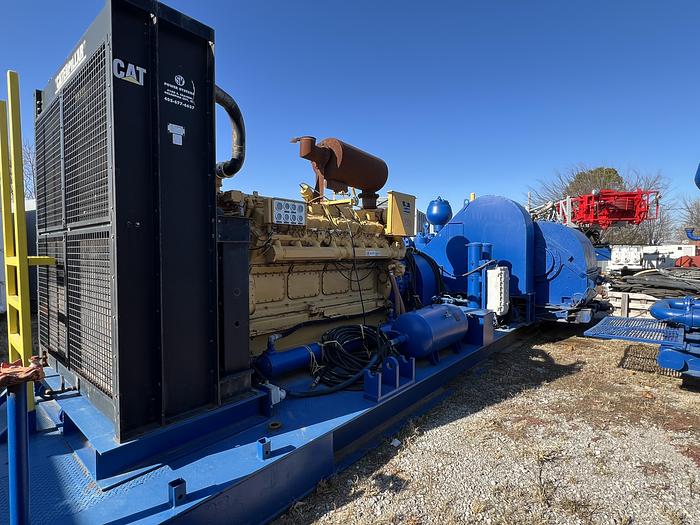

Mud Pumps:

• Mud Pump #1: Gardner Denver PZ10 Mud Pump - rebuilt

• Mud Pump #2: Gardner Denver PZ10 Mud Pump – rebuilt

Top Dog House:

• (1) Top Dog House with Tools

• (4) Sets of Pit Stairs

• (1) Hydraulic Accumulator Suit Case

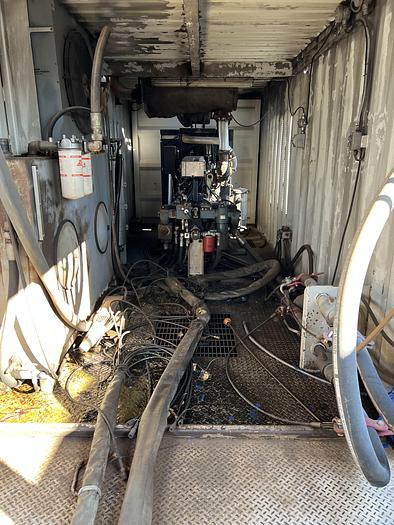

Top Drive:

• Venture Tech 250 T with (1) Top Drive Service Loop

• (1) Bottom Half for Top Drive Torque Track

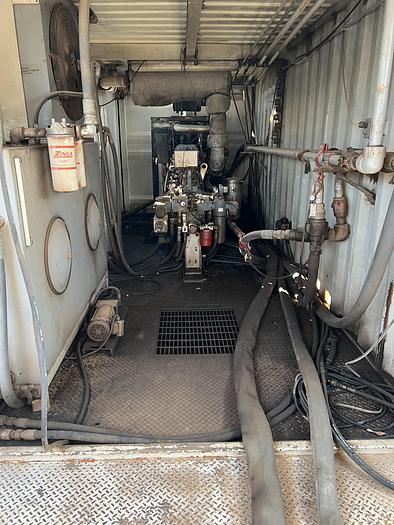

• Hydraulic Top Drive House powered by (2) Detroit 60 Series (14.0 Litre)

• “Dan Voss” Hydraulic Drive Pump System – (2) Pumps each with (4) Outlets

Miscellaneous Equipment:

• Junk Basket, Floor Hand Rails, Flow Line Skid with hoses

• (2) Oteco Valves, Miscellaneous Flow Line Plumbing

• (1) 4ft x 20ft V Door

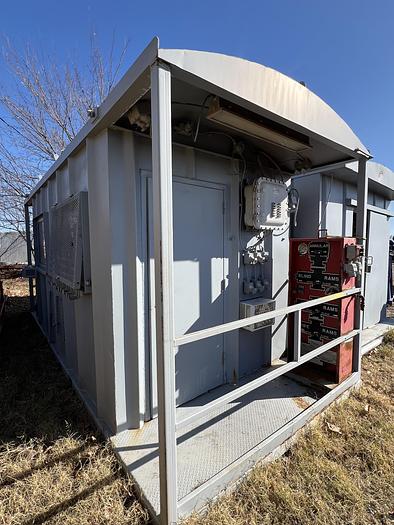

Accumulator:

• Advanced Pressure Inc., (12) Bottles, 5 Station, 3000PSI System, S/N: 11871

• (2) 55 to 1 Air Pumps

• (8) Steel Flex Accumulator Lineswww.PetroRigs.comwww.PetroRigs.com

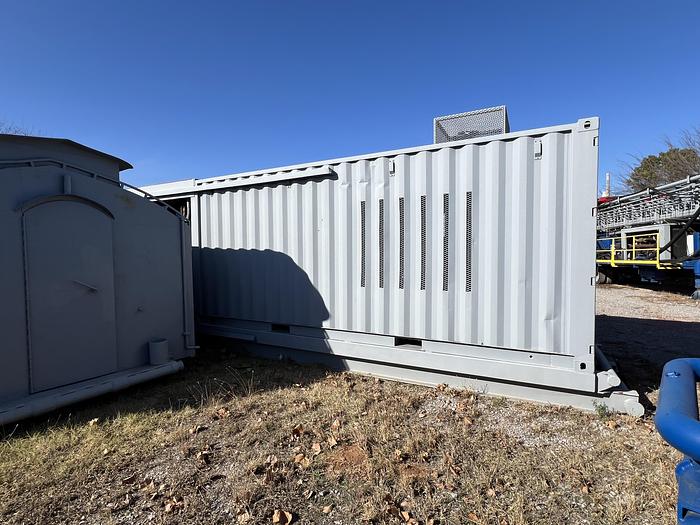

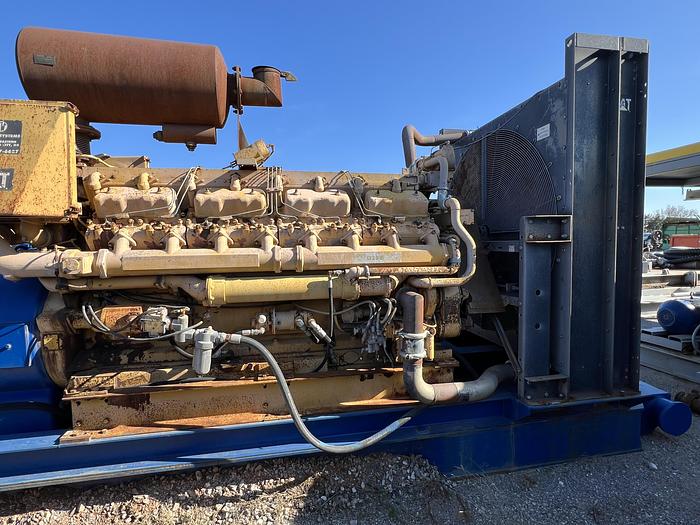

Generator House:

• Genset #1: Engine: 12V 2000, Generator: Kohler – 450KW, Model: Power Systems 600

• Genset #2: Engine: 12V 2000, Generator: Kohler – 450KW, Model: Power Systems 600

• (1) Screw Compressor – Gardner Denver, Electra Saver, Model: EBE 990, S/N: S334319

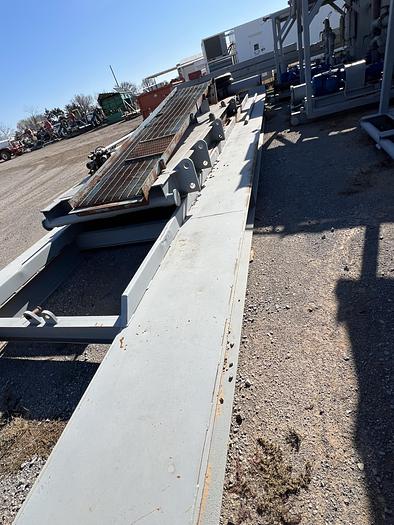

Mud Boat:

• Main Section: 60ft Long x 10ft Wide (4) 12” Beams

• Extension: 17ft 3” Long x 11ft Wide

Rotary Table:

• Sentry – 20.5”, Date: 2007, S/N: 074102

Additional Equipment:

• (1) Rotary Angle Gear Box

• (1) 40ft Parts House with Divider

• (1) Wire Line 15,000 x .092 – Five Star

• Consumables
